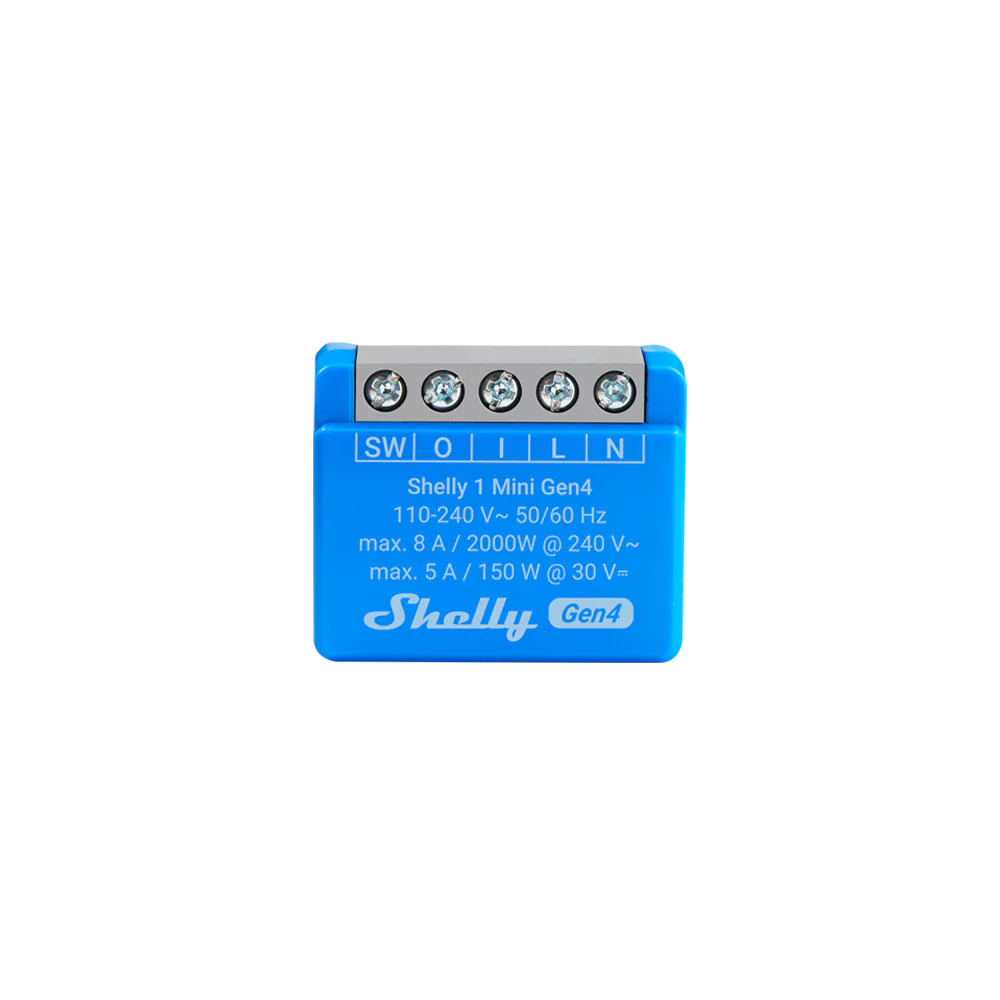

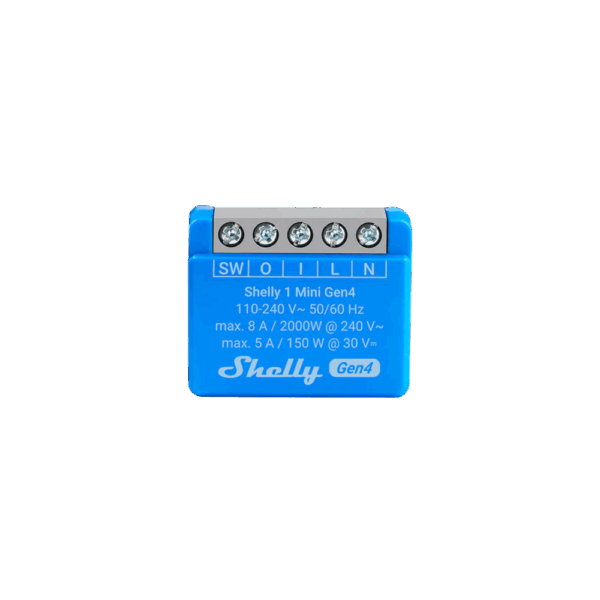

Shelly 1 Mini GEN4
kr. 3.600
Næstu kynslóðar snjallrofi frá Shelly til að stjórna ljósum og litlum heimilistækjum allt að 8 A. Útbúinn með Shelly örgjörva og stuðningi við ýmsa samskiptamáta: Wi-Fi, Zigbee, Bluetooth, Matter.
Hentar einstaklega vel til að snjallvæða bílskúrshurða opnara t.d
Á lager (hægt að leggja inn biðpöntun)
Loading...
Lýsing
Næstu kynslóðar snjallrofi frá Shelly til að stjórna ljósum og litlum heimilistækjum allt að 8 A. Útbúinn með Shelly örgjörva og stuðningi við ýmsa samskiptamáta: Wi-Fi, Zigbee, Bluetooth, Matter.
-
Styður marga samskiptamáta: Veldu milli Wi-Fi, Zigbee & Bluetooth
-
Matter – stuðningur
-
Styður allt að 8 A at 240 VAC and 5 A at 30 VDC
-
Þurr snerta (Spennufrí)

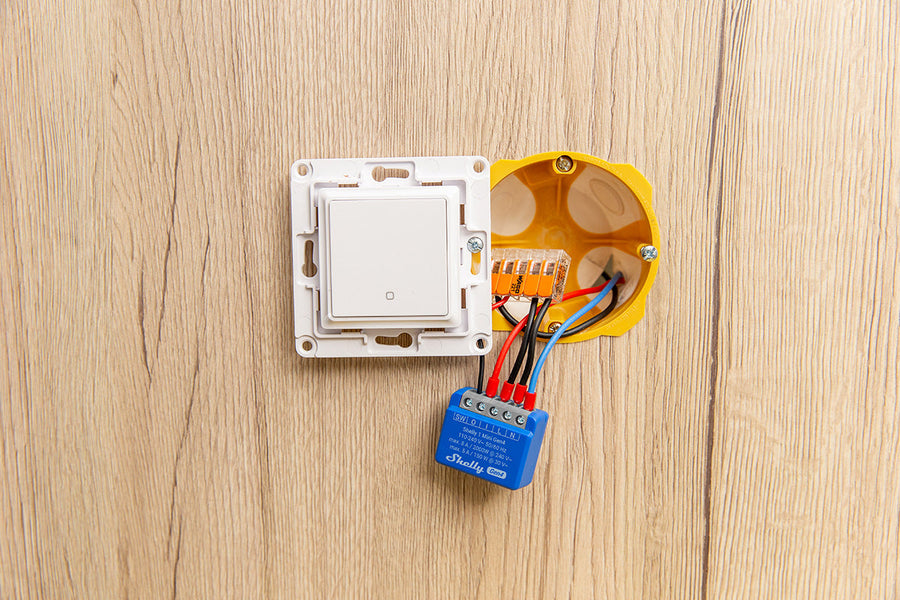

- Passar bakvið flesta rofa og tengla, agnarsmá eining.
-
Wi-Fi & Zigbee range extender & Bluetooth gateway
-
Styður tímaáætlanir, senur og staðbundnar aðgerðir
-
Styður scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
-
Ekki þörf á snjallstöð! Auðvelt að tengja við Wi-FI og stýra með fría Shelly Smart Control appinu, Styður flest önnur kerfi og raddstýringar einnig eins og Alexa, Home Assistant, Homey o.fl
| Physical | |

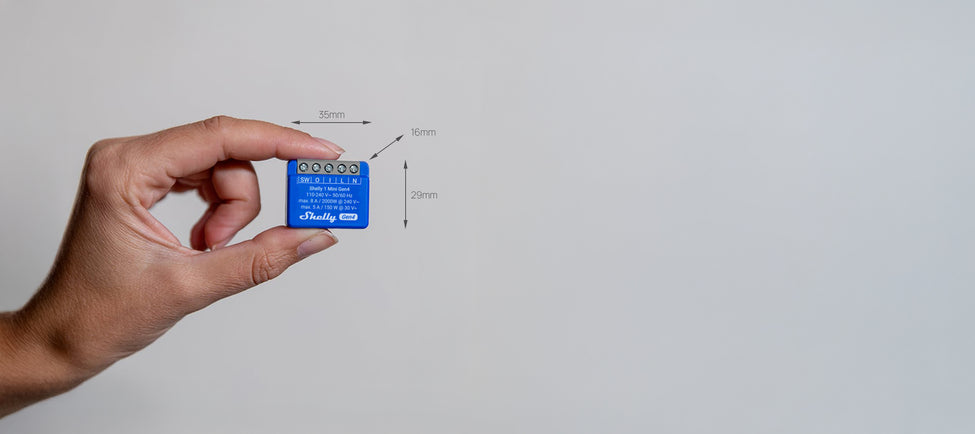

| Size (HxWxD): | 29x34x16 ±0.5 mm / 1.34×1.11×0.63 ±0.02 inch |
| Weight: | 19 ±1 g / 0.65 ±0.04 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall box |
| Shell material: | Plastic |
| Shell color: | Blue, C-95%; M-53%; Y-0%; K-0% |
| Connectors color: | Grey (Mouse Grey) |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 – 240 V~ |
| Relay: | Dry, NO contact, 1-pole, µ contact |
| Power consumption: | < 1.2 W |
| External protection: | Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
| Output circuits ratings | |
| Max. switching voltage: |
|
| Max. switching current: |
|
| Max. output power: |
|
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2412 – 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 5.0 |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee | |
| Protocol: | 802.15.4 |
| RF bands: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C68F |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
Basic wiring diagrams
Legend
| Terminals | Wires | ||
|---|---|---|---|
| SW | Switch (controlling O) input terminal | L | Live (110 – 240 V~) wire |
| O | Load circuit output terminal | N | Neutral wire |
| I | Load circuit input terminal | ||
| L | Live (110-240 V) terminal | ||
| N | Neutral terminal | ||
