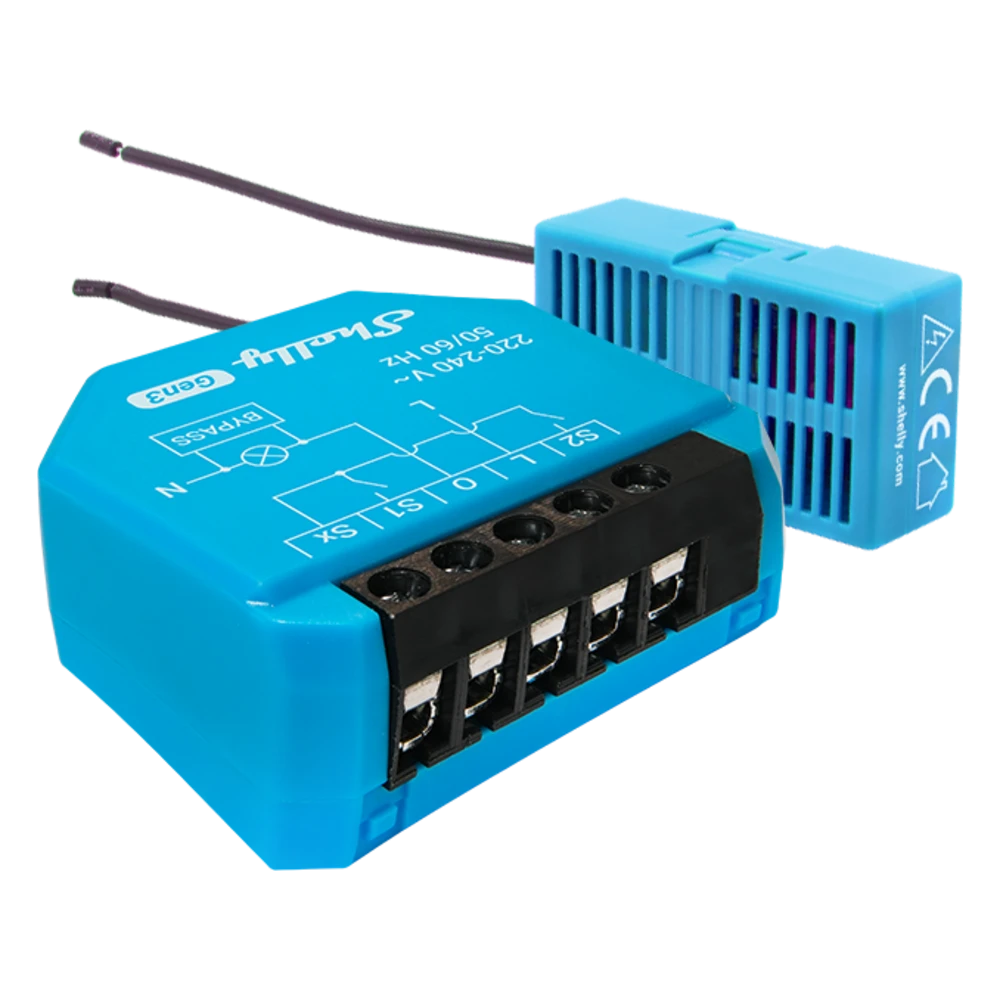

Shelly 1L GEN3 - Snjallari lausnir

Lýsing

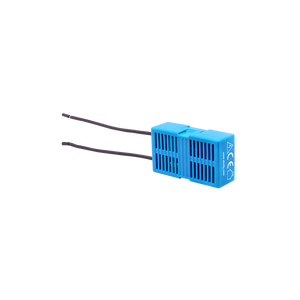

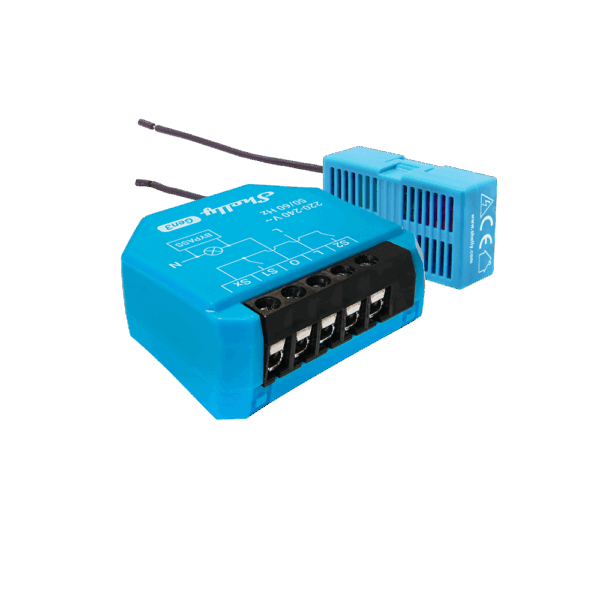

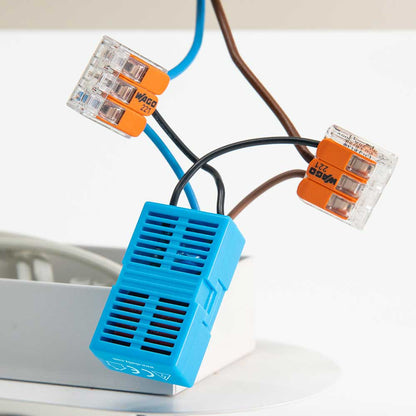

Einnar rásar snjallrofi kjörinn til að snjallvæða kveikingu á ljósi án þess að Núll sé til staðar. Með því einfaldlega að bæta við Shelly Bypass fyrir 1L/2L* samsíða álaginu geturðu auðveldlega breytt Snjallvætt lýsinguna. Með þessari einingu geturðu því bæði kveikt og slökkt ljósin í símanum og einnig með rofa. *Shelly Bypass fyrir 1L/2L fylgir með í pakkanum.

Sæktu fría Shelly smart control appið og byrjaðu að stjórna með símanum!

Bluetooth, Wi-Fi
2 rása rofi: styður allt að 200w álag á útganginn.
Ekki þörf á N (Neutral)
Ekkert lágmarksálag með Shelly Bypass
Innbyggður hitanemi með yfirhitavörn.
Styður KNS / IP samskipti.

Quantity	Value
Physical
Size (HxWxD):	37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight:	24 g / 0.85 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in

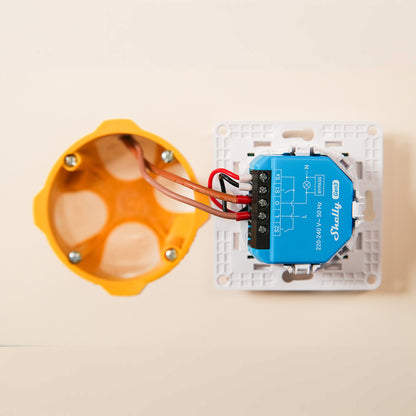

Mounting:	In-wall
Shell material:	Plastic
Shell color:	Cyan
Terminal color:	Black
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Storage temperature:	10°C to 40 °C
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	220-240 V~ 50Hz (Shelly Bypass is required)
Shelly Bypass included	Yes
Power consumption:	< 1.2 W
Neutral not needed:	Yes (Shelly Bypass is required for the load at O)
Min. load without neutral and without a Bypass:	No (Shelly Bypass is required for the load at O), for all LED lights. No, Bypass is not needed for incandescent lights.
External protection:	10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
Output circuits ratings
Max. switching voltage:	240 V~ 50 Hz
Max. switching power:	200 W
Sensors, meters
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2401 – 2495 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2400 – 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP-Shelly-C38F
Clock frequency:	160 Mhz
RAM:	512 KB
Flash:	8 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

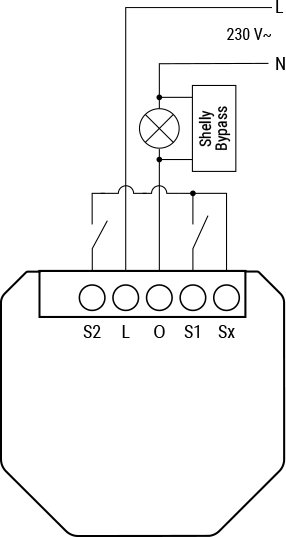

Basic wiring diagram

Legend

Terminals		Wires
L	Live (220-240 V~) terminal	L	Live (220-240 V~) wire
O	Load circuit output terminal	N	Neutral wire
S1, S2	Switch input terminals
Sx	Switch signal output terminal
