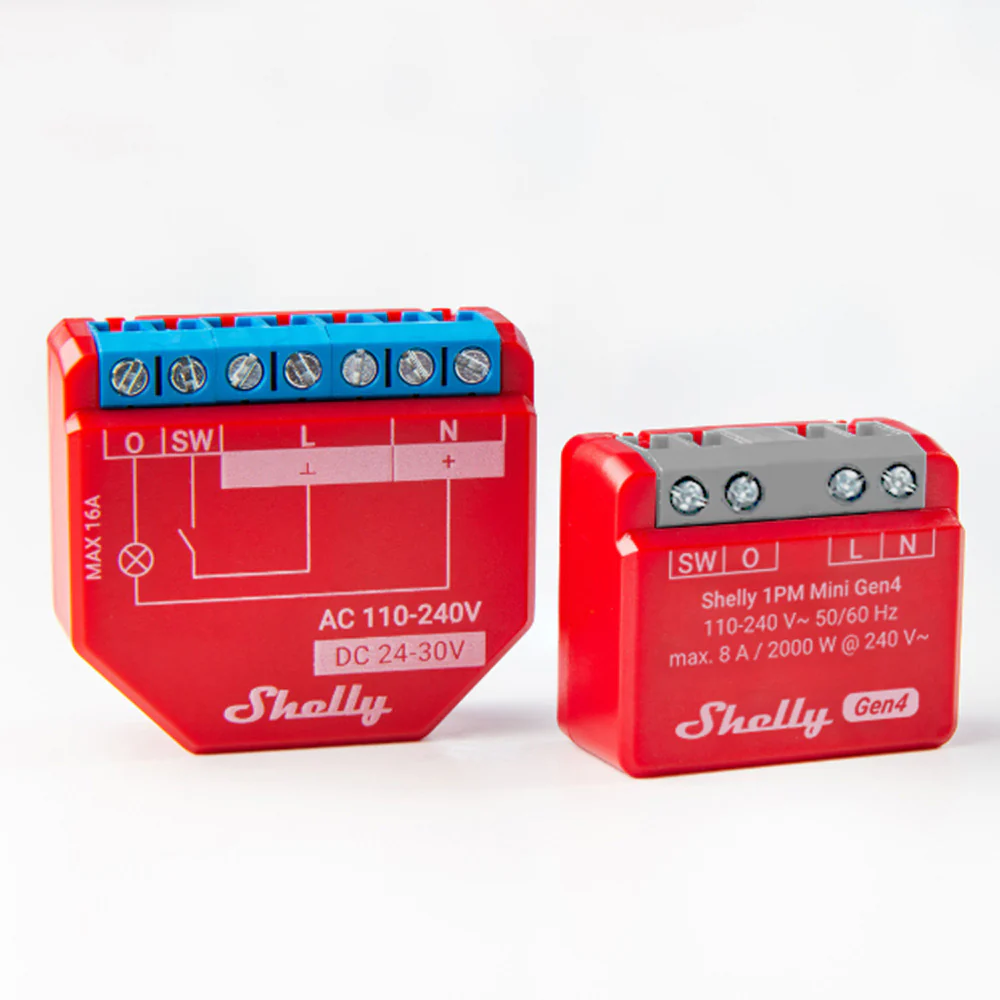

Shelly 1PM Mini Gen4

kr. 3.990

Næstu kynslóðar Lítill snjallrofi með aflmælingu til að stjórna ljósum og litlum tækjum allt að 8 A. Útbúinn með Shelly örgjörva og styður fjölsamskiptareglur: Wi-Fi, Zigbee, Bluetooth, Matter.

Á lager (hægt að leggja inn biðpöntun)

Vörunúmer: 3800238070809 Flokkar: ,
Loading...

Lýsing

Næstu kynslóðar Lítill snjallrofi með aflmælingu til að stjórna ljósum og litlum tækjum allt að 8 A. Útbúinn með Shelly örgjörva og styður fjölsamskiptareglur: Wi-Fi, Zigbee, Bluetooth, Matter.

  • Styður marga samskiptamáta: Veldu milli Wi-Fi, Zigbee and Bluetooth
  • Matter stuðningur
  • Styður alllt að 8 A at 240 VAC​
  • Nákvæm og rauntíma orkumæling með ókeypis skýgeymslu fyrir greiningu og hagræðingu orkunotkunar.

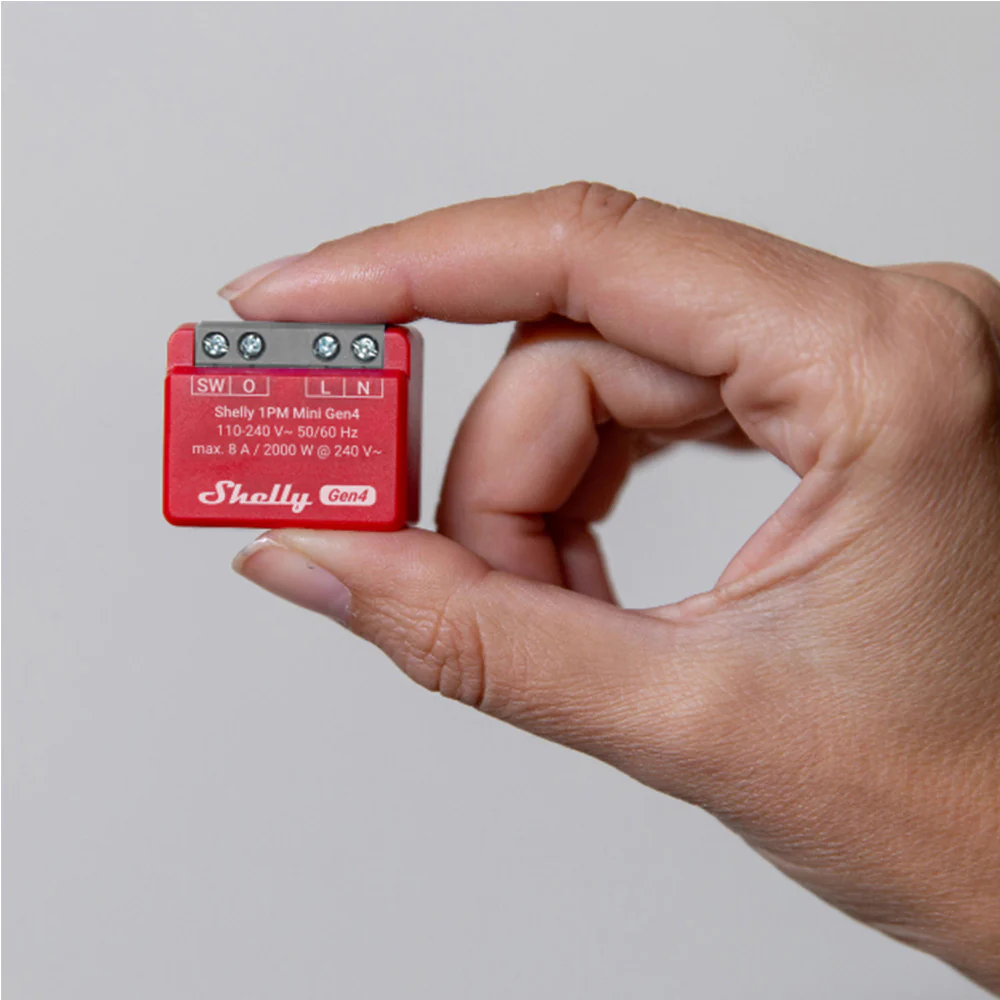

  • Passar vel á bakvið rofa/tengla, agnarsmá eining.
  • Styður tímaáætlanir, senur og staðbundnar aðgerðir
  • Styður scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
  • Ekki þörf á snjallstöð! Auðvelt að tengja við Wi-Fi og stýra með fría Shelly Smart Control appinu, styður einnig flest önnur þekkt kerfi, og raddstýringar eins og Alexa, Home Assistant, Homey o.fl.
Quantity Value
Physical
Size (HxWxD): 29x34x16 ±0.5 mm / 1.34×1.11×0.63 ±0.02 inch
Weight: 18 ±1 g / 0.63 ±0.04 oz
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Mounting: Wall box
Shell material: Plastic
Shell color: Red, C-3%; M-100%; Y-70%; K-12%
Connectors color: Grey (Mouse Grey)
Environmental
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft
Electrical
Power supply: 110 – 240 V~
Relay: NO contact, 1-pole, µ contact
External protection: Tripping characteristic B or C,
max. 10A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3
Output circuits ratings
Max. switching voltage: 240 V~
Max. switching current: 8A/240 V~
Power measurement: Yes
Voltage protection / Cutoff: Yes
Current protection / Cutoff: Yes
Max power protection / Cutoff: Yes
Sensors, meters
Internal-temperature sensor: Yes
Radio
Wi-Fi
Protocol: 802.11 b/g/n/ax
RF band: 2412 – 2472 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol: 5.0
RF band: 2402 – 2480 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Zigbee
Protocol: 802.15.4
RF bands: 2400 to 2483.5 MHz
Max. RF power: < 20 dBm
Range: Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU: ESP-Shelly-C68F
Flash: 8MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes



Basic wiring diagrams




Legend

Terminals Wires
SW Switch (controlling O) input terminal L Live (110 – 240 V~) wire
O Load circuit output terminal N Neutral wire
L Live (110-240 V) terminal
N Neutral terminal
