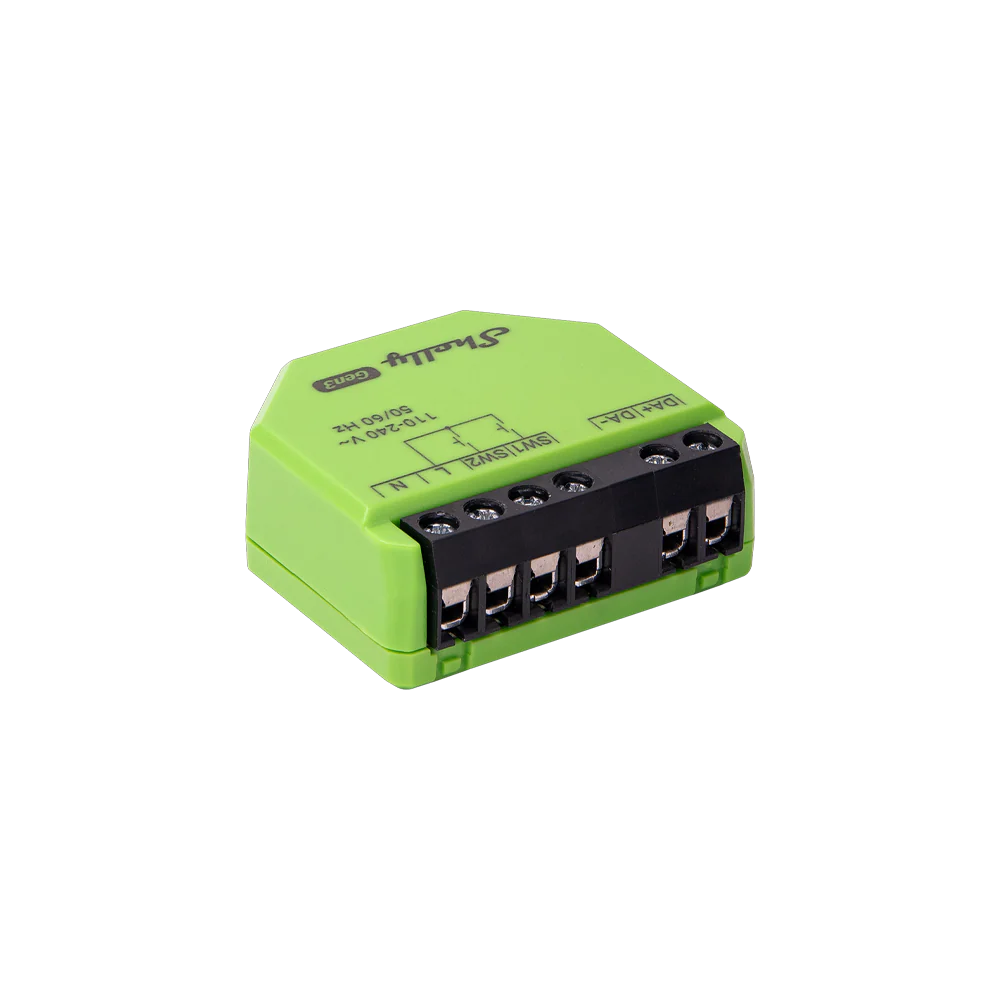

Shelly DALI Dimmer G3 - Snjallari lausnir

Lýsing

Taktu ljósastýringuna þína á annað plan með Shelly DALI Dimmer Gen3 og gerðu lýsinguna snjalla!

Athugið að þetta er ekki hefðbundinn Dimmer heldur einungis fyrir DALI samskipti.

Wi-Fi and Bluetooth connectivity (BLE gateway and Wi-Fi range extender)
DALI single master application controller
Supports LED control gear (DALI Part 207 gear)
Bus power supply guaranteed 10mA (up to 5 DALI control gear units)
Smart schedules
Night mode: Enables to set a specific brightness of lights during night time
Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control
Button fade rate: Controls how quickly the brightness changes while holding the button(s)
Transition duration: Controls the time for dimming from 0 to 100%
Supports scripting, webhooks, MQTT and local actions
Supports KNXnet / IP communication
No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants

Size (H x W x D):	42 x 37 x 17 mm / 1.65 x 1.46 x 0.66 inches
Weight:	18 g
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Cross-section of the conductor:	0.2 to 2.5 mm²/ 24 to 14 AWG (solid, stranded and wire-end cores)
Stripping length of the conductor:	6 to 7 mm / 0.24 to 0.28 inch
Mounting:	In-wall installation, suspended ceilings
Fitting material:	Plastic
Colour of the housing:	Size
Ambient temperature:	-20 °C to 40 °C
Humidity:	30% to 70% relative humidity
Max. Höhe ü.M.:	2000 m
Power supply:	110 – 240 V~ ±10 % 50/60 Hz
Internal consumption of the device:	< 2 W
Neutral conductor is required:	No
Bus power supply:	Guaranteed 10 mA (up to 5 DALI ballasts), short-circuit current 35 mA
Bus voltage:	16 V nominal
Internal temperature sensor:	Yes 802.11 b/g/n
HF band:	2401 – 2495 MHz
Max. HF power:	< 20 dBm
Range:	Up to 50 m outdoors, up to 30 m indoors (depending on local conditions)
Protocol:	4.2
Frequency band:	2400 – 2483.5 MHz
Max. HF power:	< 4 dBm
Range:	Up to 30 m outdoors, up to 10 m indoors (depending on local conditions)
CPU:	ESP-Shelly-C38F
Flash:	8 MB
Time schedule:	20
WebHooks (URL actions):	20 with five URLs per hook
Scripting:	Yes
MQTT:	Yes
Encryption:	Yes, TLS 1.2
