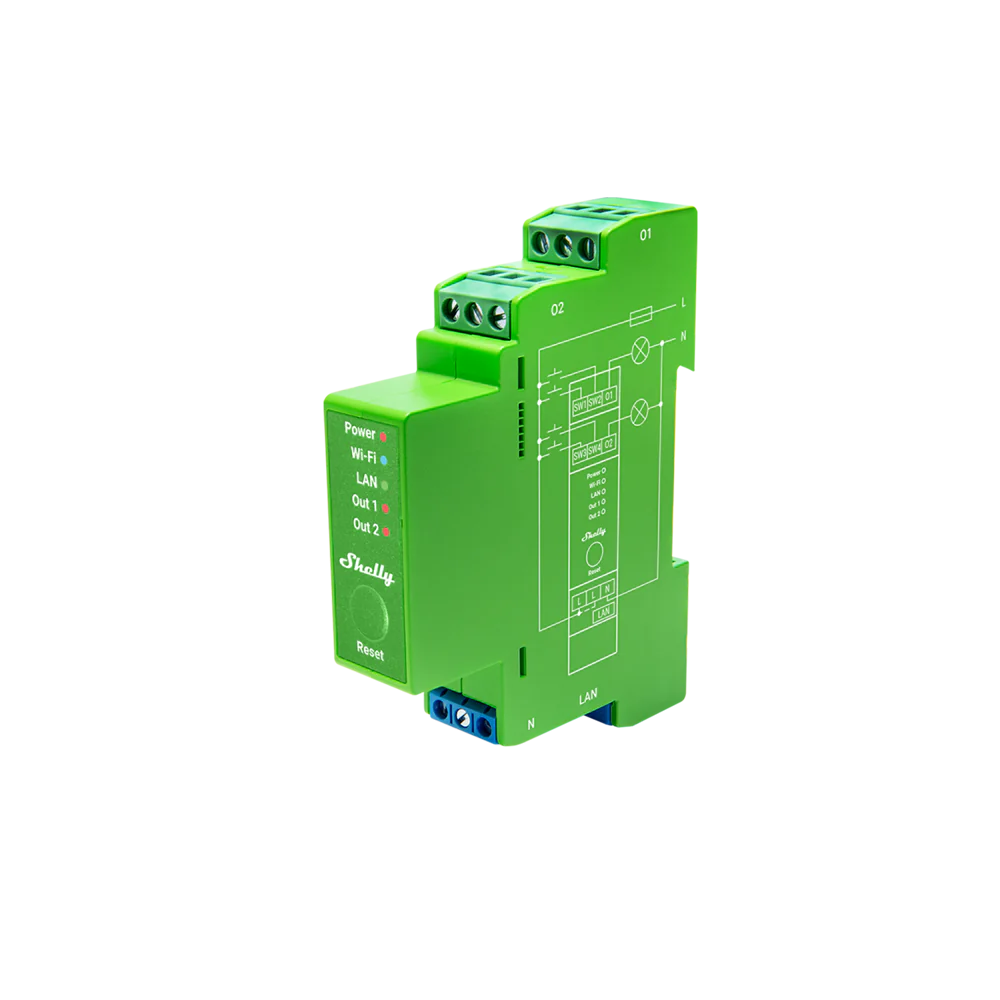

Shelly Pro Dimmer 2PM
Shelly Pro Dimmer 2PM - Image 2
Shelly Pro Dimmer 2PM - Image 3

Shelly Pro Dimmer 2PM

kr. 12.990

Professional 2 rása Dimmer eining með Wi-FI,LAN og bluetooth. Passar beint inní töflu/ tengikassa á DIN festingu. Tilvalið til að snjallvæða ljósin,

Hægt að nota t.d sem sólúr (þarf þá wifi/LAN)

Virkar með Shelly smart control appinu sem er frítt eða öllum helstu snjallframleiðendum/snjallstöðvum á markaði.

Á lager (hægt að leggja inn biðpöntun)

Vörunúmer: 3800235268179 Flokkar: ,
Loading...

Lýsing

[vc_row][vc_column][vc_column_text]

Wi-Fi/LAN Dimmer frá Shelly sem passar beint á Din skinnu inní töflu og er tvöfaldur 2x 200w, með orkumælingu. Virkar vel til ljósdeyfingar og orkumælingar fyrir halogen ljós,dimmanlegt LED og Dimmanlega Led drivera (110-240V)

Þú getur svo stýrt dimmernum í gegnum snjallstöð, HomeAssistant eða með fría Shelly smartcontrol appinu sem þú getur sótt í Appstore/Playstore.

Stuðningur við KNX.

Quantity Value
Physical
Size (HxWxD): 94x19x69 mm / 3.70×0.75×2.71 in
Weight: 75 g / 2.7 oz
Screw terminals max torque: 0.4 Nm / 3.54 lbin
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
0.5 to 1.5 mm² / 20 to 16 AWG (blue connector)
(solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connectors)
5 to 6 mm / 0.20 to 0.24 in (blue connector)
Mounting: DIN rail
Shell material: Plastic
Shell color: Lime
Environmental
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft
Electrical
Power supply: 110 – 240 V~ 50/60 Hz
Power consumption: < 2 W
External protection: 10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Dimming type: Trailing edge
Output circuits ratings
Max. output power: 200 W per channel
Sensors, meters
Voltmeter (AC): Yes
Ammeter (AC): Yes
Power and energy meters: Yes
Internal-temperature sensor: Yes
Radio
Wi-Fi
Protocol: 802.11 b/g/n
RF band: 2401 – 2483 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol: 4.2
RF band: 2400 – 2483.5 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU: ESP32-D0WDQ6
Flash: 8 MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes

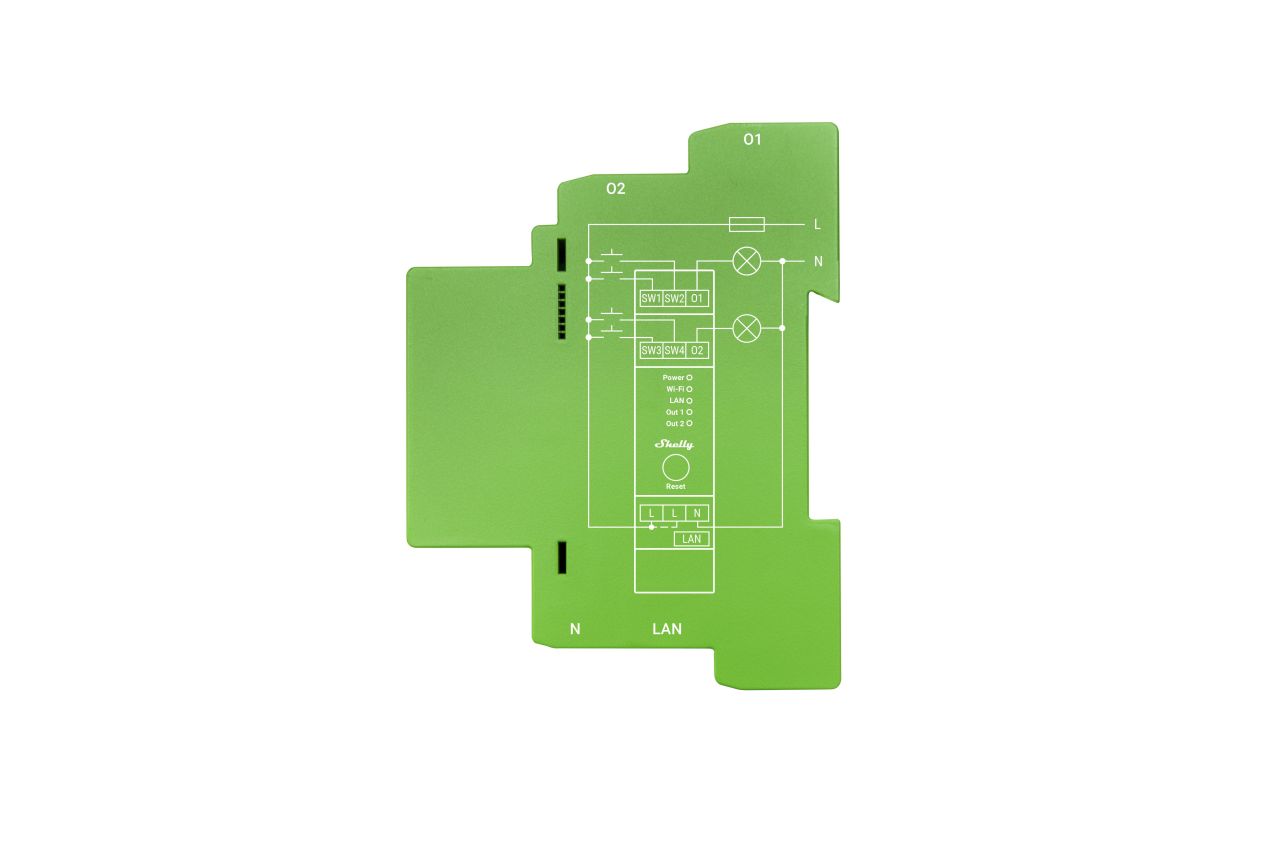

Basic wiring diagrams


Legend

Terminals Wires
SW1, SW2 Switch/button input terminals controlling O1 L Live (110-240 V) wire
SW3, SW4 Switch/button input terminals controlling O2 N Neutral wire
O1, O2 Load circuit output terminals
L Live (110-240 V) terminals
N Neutral terminal
LAN Local Area Network RJ 45 connector
