Lýsing

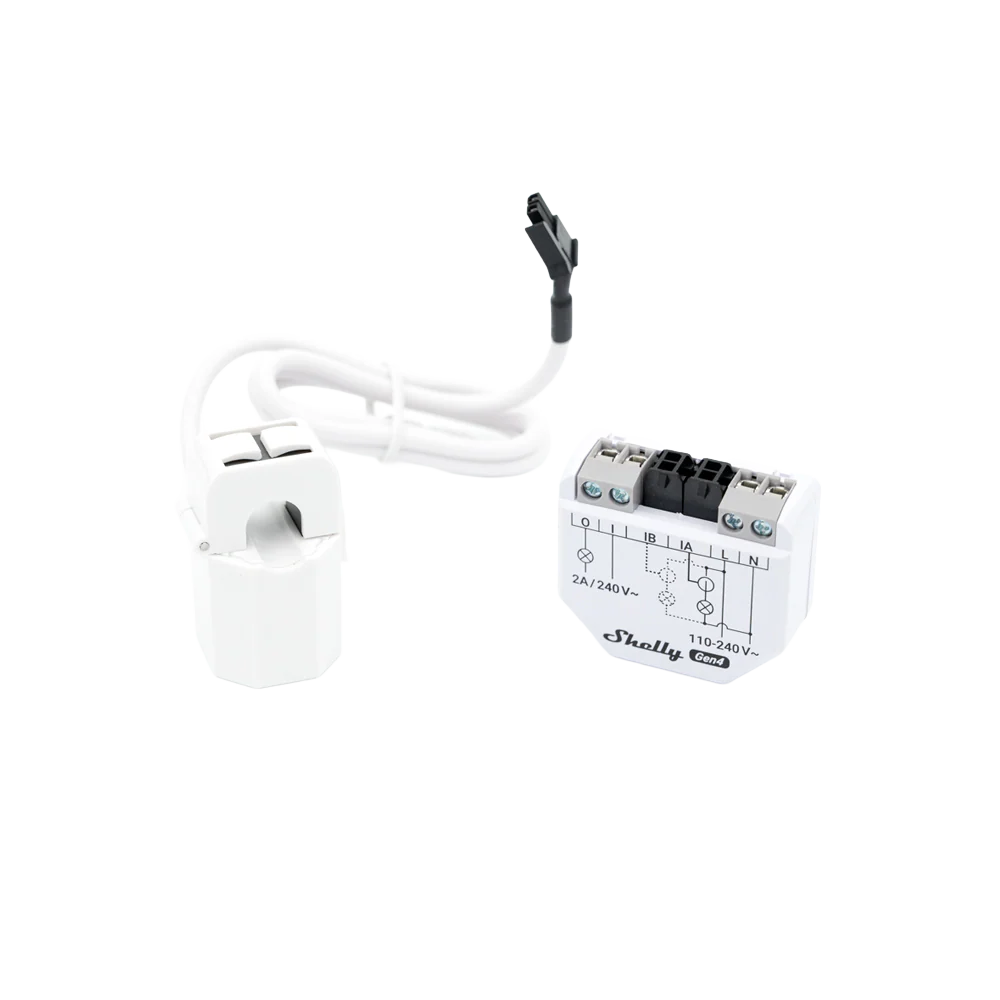

Frábær eins fasa 2 rása mæli eining til að mæla straumnotkun, fylgir 50A klemma.

Bluetooth 5, Wi-Fi 6, ZigbeeNýtt – Matter-vottað: Virkar með Matter „beint úr kassanum“.
Uppfærður vélbúnaður: Öflugur nýr örgjörvi með 16 MB minni
Staðbundin gagnaskráning: Geymir gögn á tækinu í að minnsta kosti 30 daga með 1 mínútu upplausn
Nýtt – Samhæfðar straumklemmur: 50 A, 80 A og 120 A
Einsfasa, tveggja rása mæling
Styður allt að 2 klemmur fyrir snertilausa mælingu.
Þurr snerta fyrir snjalla stýringu t.d við straumrof.
Öryggiseiginleikar: Ofhitnunar-, ofspennu-, ofstraums- og ofhleðsluvörn

Quantity	Value
Physical
Size (HxWxD):	37x42x16 mm / 1.46×1.65×0.63 inch
Weight:	26 g / 0.92 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall console
Shell material:	Plastic
Shell color:	White
Connectors color:	Grey (Mouse Grey RAL7005, R(106) G(110) B(106), HEX #6A6E6A, LRV 15.19.)
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply voltage AC:	110 – 240 V, 50/60 Hz
Power supply voltage DC:	N/A
Power consumption:	< 1 W
External protection:	2 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
Output circuits ratings
Max switching voltage AC:	240 V
Max switching voltage DC:	N/A
Max. switching current:	2 A
Sensors, meters
Voltmeter (AC):	110 – 240 V
Voltmeter accuracy:	±2 %
Ammeter (AC):	0 – 120 A
Ammeter accuracy:	±2 % (2 – 50 A), ±2 % (1 – 2 A), ±5 % (0 – 1 A)

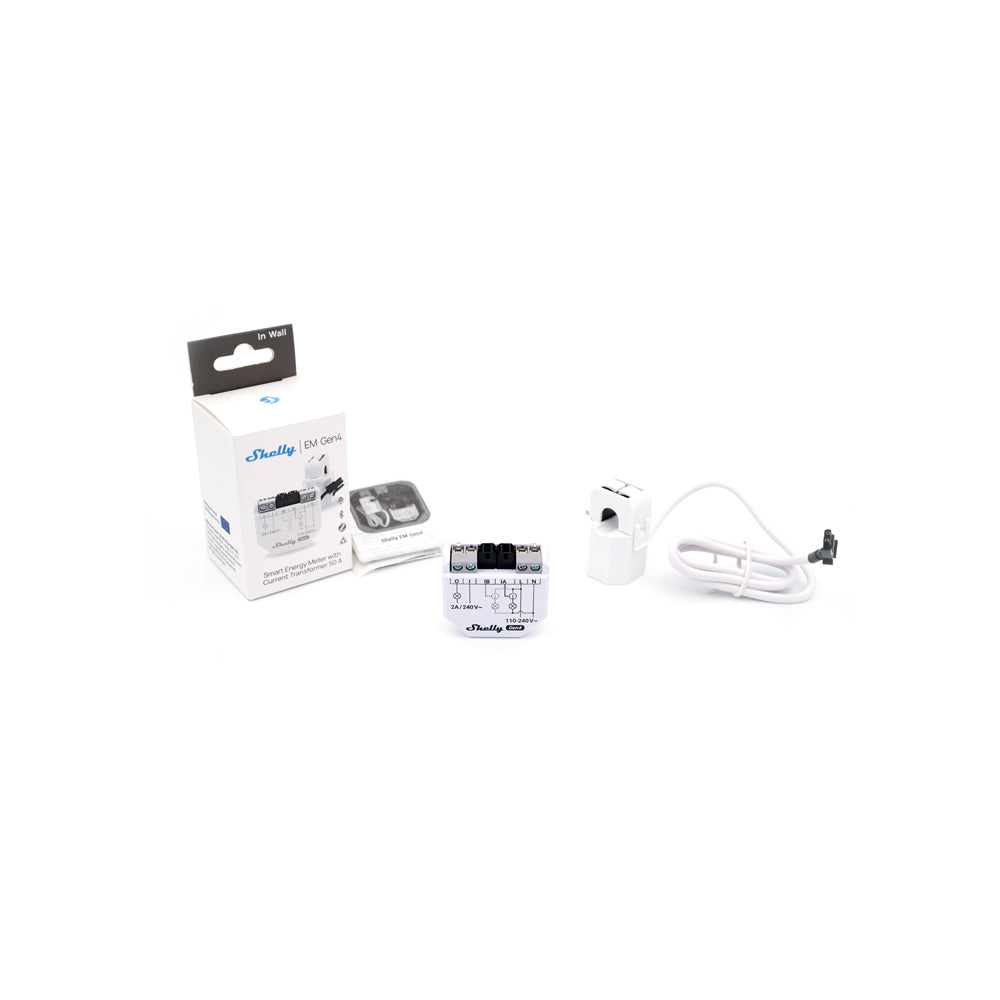

Compatible current transformers:	CT 50A (included in the package) CT 80A CT 120A
Power and energy meters:	Active and apparent power Active and apparent energy Power factor
No load threshold:	30 VA per phase
Measurement data storage:	At least 30 days of 1 min data resolution
Data export:	CSV for PQ recorded values JSON format export through RPC
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n/ax
RF band:	2412 – 2484 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	5 (LE)
RF band:	2402 – 2480 MHz
Max. RF power:	< 20 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocol:	802.15.4
Zigbee repeater:	Yes
RF bands:	2405 to 2480 MHz
Max. RF power:	< 20 dBm
Range:	Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP32C6
Flash:	16MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

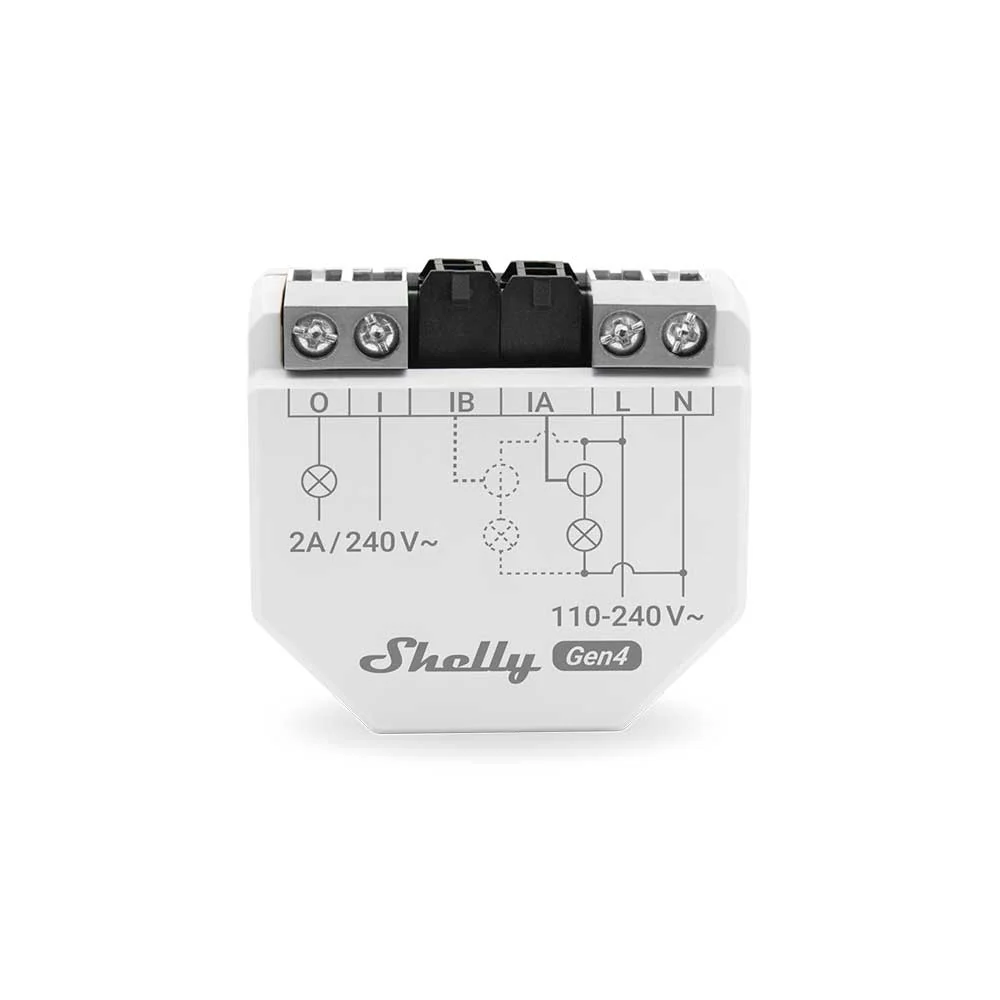

Basic wiring diagrams

Legend

Terminals		Wires
O	Load circuit output terminal	L	Live (110-240 V~) wire
I	Load circuit input terminal	N	Neutral wire
IA	First channel current transformer input	Current transformers
IB	Second channel current transformer input	CTA	First channel current transformer
L	Live (110-240 V~) terminal	CTB	Second channel current transformer
N	Neutral terminal
