Lýsing

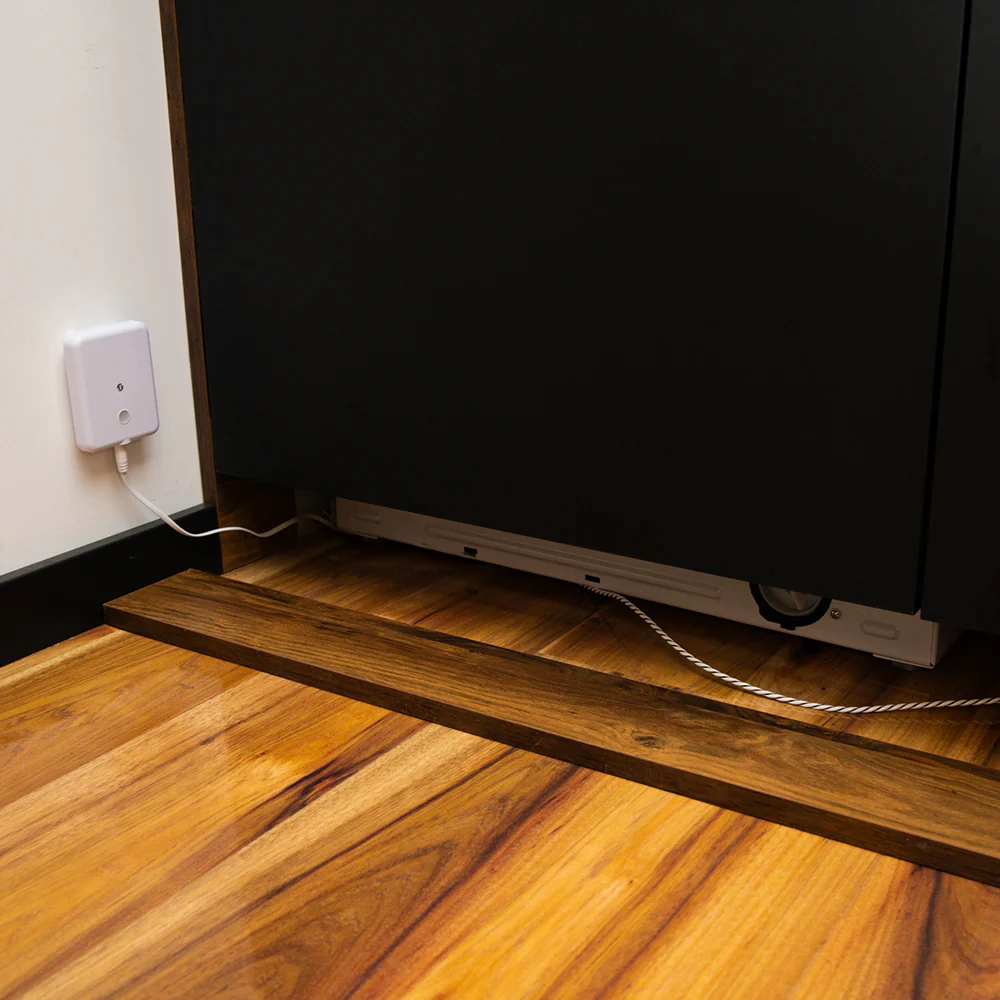

Vertu skrefi á undan vatnstjóni. Snjall flóðskynjari með lekaskynjara, tilbúinn til að greina óvænt vandamál áður en þau stigmagnast. Gefur viðvaranir í rauntíma og passar fullkomlega í snjallheimiliskerfið þitt. Tilvalið fyrir kjallara, eldhús, bílskúra, þvottahús, sumarhús eða önnur svæði í áhættuhópi. Engin þörf á sérstakri snjallstöð þú getur tengt nemann við Wi-Fi og sótt fría Shelly Smart control appið sem er til fyrir bæði iphone og android.
- Wi-Fi
- Bluetooth
- Zigbee
- Matter
| Mode | Alarm Mode | Report State Frequency* | Buzzer** | Buzzer Mute Conditions | Use Case |
|---|---|---|---|---|---|
| Flood | Intense |
|
|
|
Protect extremely valuable assets:
|
| Normal (Default) |
|
Normal use | |||
| Economic | Disabled | N/A | Activate when you won’t visit for a while:
|
||
| Rain | – | Automating outdoor areas, such as controlling motorized awning or sprinklers.
|
*Continue reporting until successful, then sleep. Report again upon flood state change. If multiple reporting channels are configured, success on any channel will be considered a successful report.
**Buzzer pattern: 3.5 sec ON / 1.5 sec OFF
Specifications
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 97x76x25 mm / 3.82×2.99×0.98 inch |
| Weight: |
|
| Mounting: | Wall |
| Shell material: | Plastic |
| Shell color: | White |
| Environmental | |
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | Batteries |
| Battery type: | 4x AA 1.5 V |
| Estimated battery life: | approx. 2 years (depending on batteries used, device usage, and network connection strength) |
| Sensors, meters | |
|
Leak sensor cable: |
2 m, extendable (up to 150 m), attaches via designated port |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2401 – 2483 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 5 (LE) |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee | |
| Protocols: | 802.15.4 |
| RF bands: | 2405 to 2480 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C68F |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | No |
| Webhooks (URL actions): | 10 with 2 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
| UDP: | Yes |
| KVS (Key-Value Store): | Yes |
