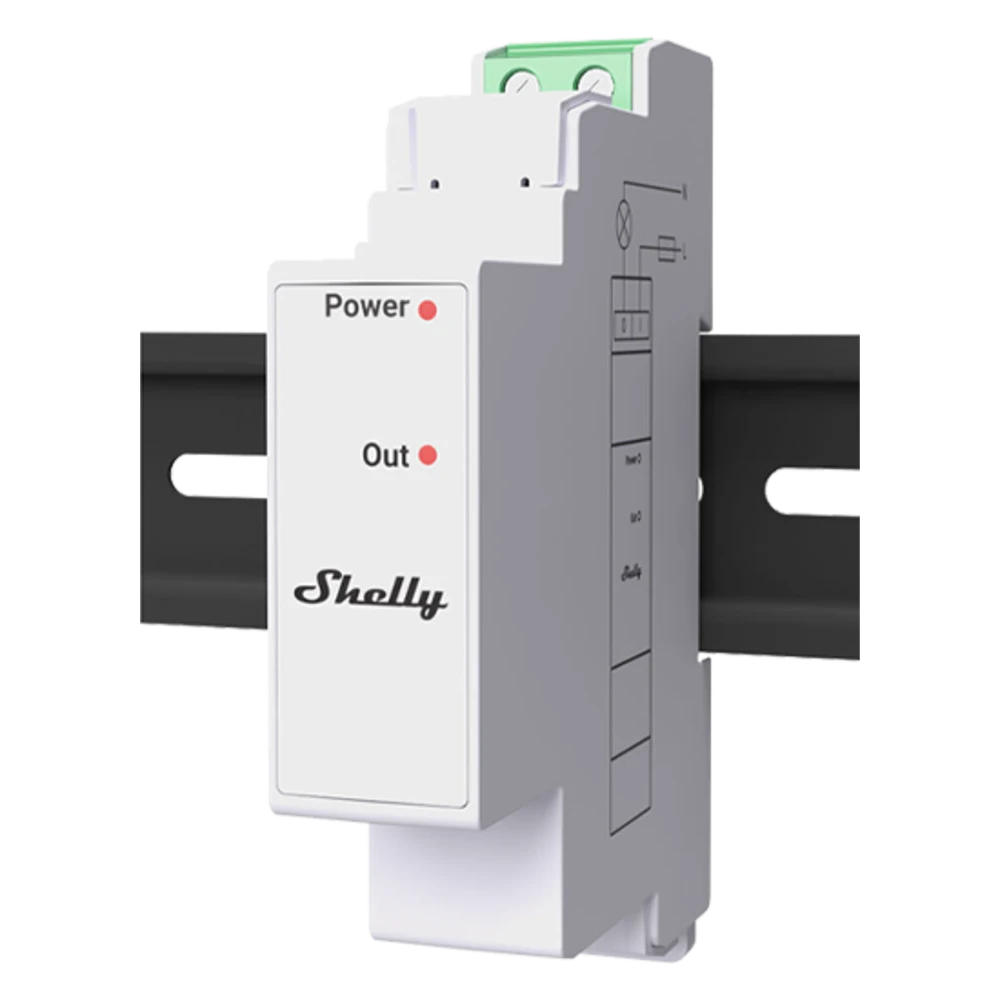

Shelly Pro 3EM Switch Add-on

Shelly Pro 3EM Switch Add-on

kr. 3.890

Á lager (hægt að leggja inn biðpöntun)

Vörunúmer: 3800235268131 Flokkar: ,
Loading...

Lýsing

Þessi eining er hönnuð til að auka getu Shelly Pro 3EM tækisins. Þessi viðbót gerir þér kleift að stjórna raftækjum auðveldlega, sem gefur þér meiri sveigjanleika og stjórn á neyslu þinni.

Þurr snerta
Hægt að festa DIN-teina
*Aðeins samhæft við Shelly Pro 3EM!



PHYSICAL
Size (HxWxD): 94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in
Weight: 20 ±1 g / 0.70 ±0.05 oz
Mounting: DIN rail, attached to a Shelly Pro 3EM
Screw terminals max torque: 0.4 Nm / 4.43 lbin
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Shell material: Plastic
Color: White
ENVIRONMENTAL
Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft
ELECTRICAL
Power supply voltage AC: N/A
Power supply voltage DC: 3.3 V and 12 V (from Shelly Pro 3EM device)
Power consumption: < 1 W
OUTPUT CIRCUITS RATINGS
Max switching voltage AC: 240 V
Max switching voltage DC: 30V
Max switching current AC: 2A
Max switching current DC: 2A
PRODUCT SUPPORT
Even the smartest minds need
a little guidance sometimes

Wiring diagrams »    User manual »
