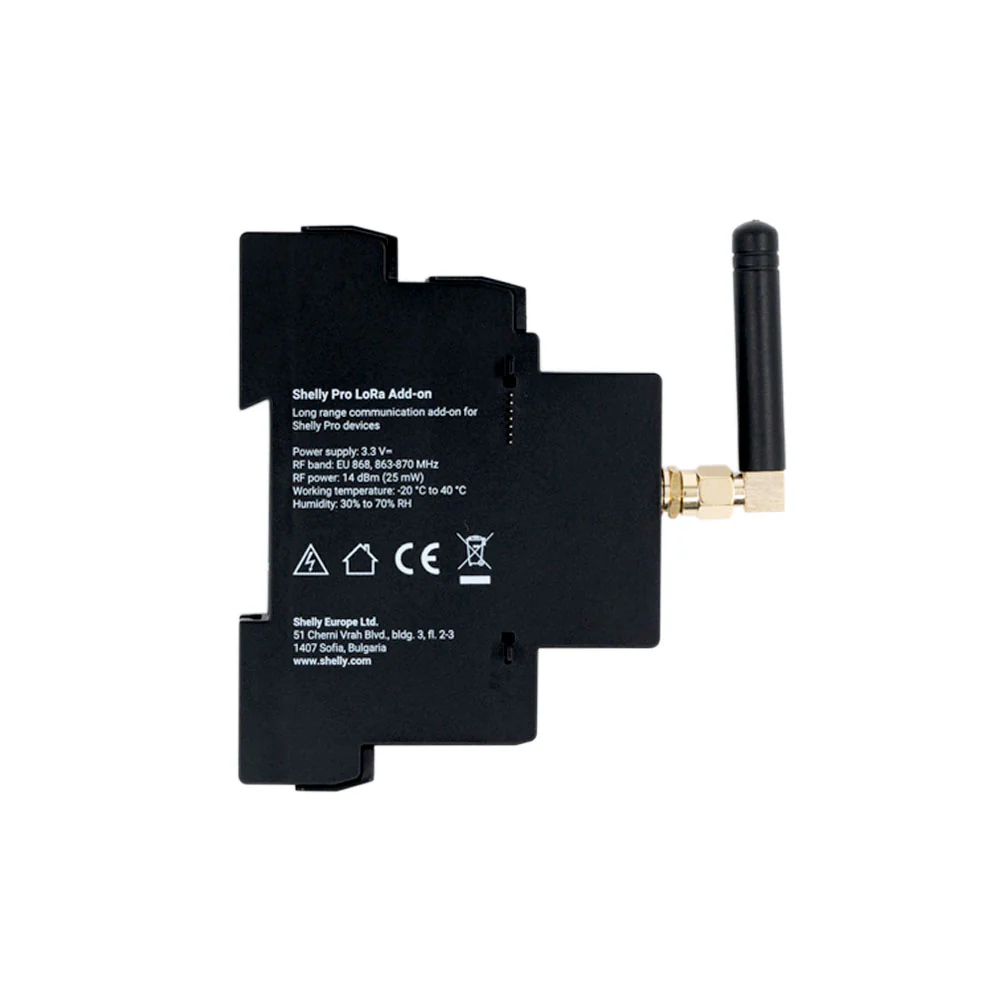

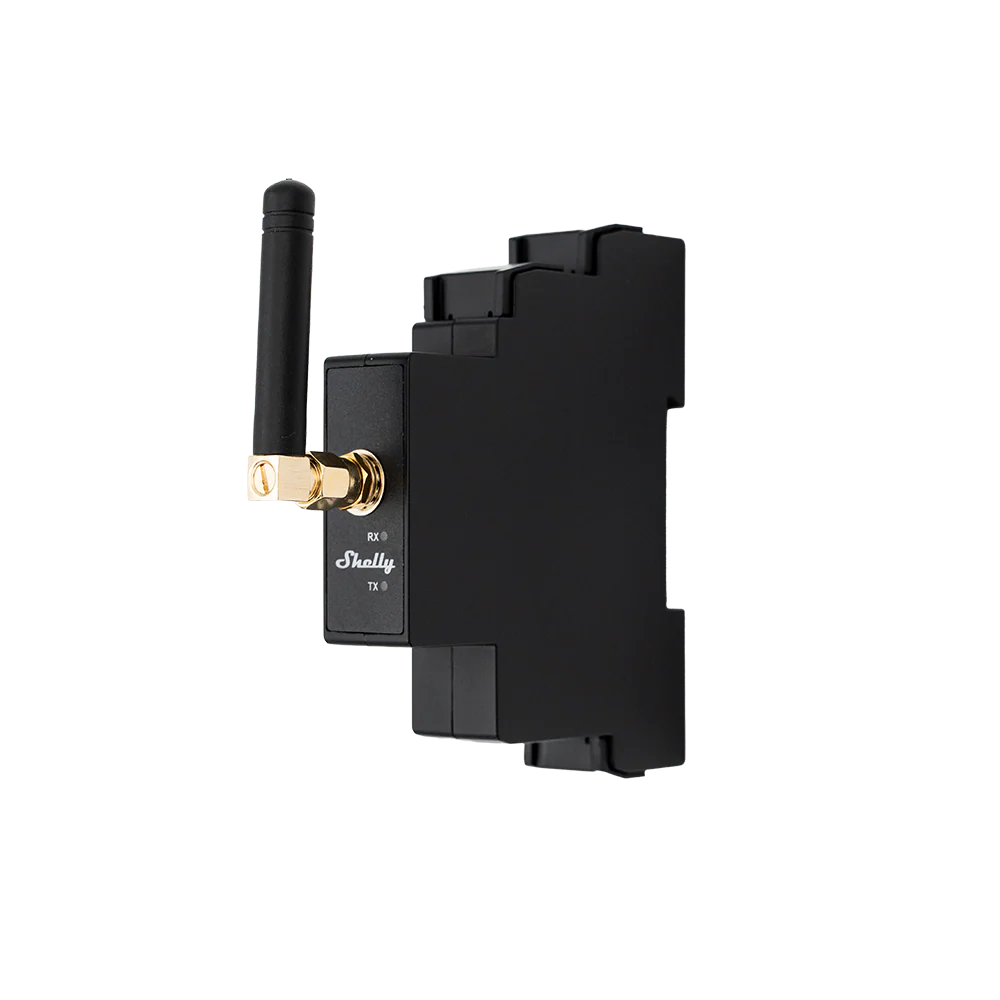

Shelly Pro LoRa Add-on
kr. 14.290
Shelly Lora Addon gerir þér kleypt að ná samskipti allt að 5 km fyrir tiltekin Shelly Pro tæki, sem gerir sjálfvirkni og fjarstýringu mögulega í krefjandi eða víðfeðmu umhverfi.
Shelly LoRa viðbótin er ekki sjálfstætt tæki og verður að vera tengd við samhæft Shelly Pro tæki til að fá afl.

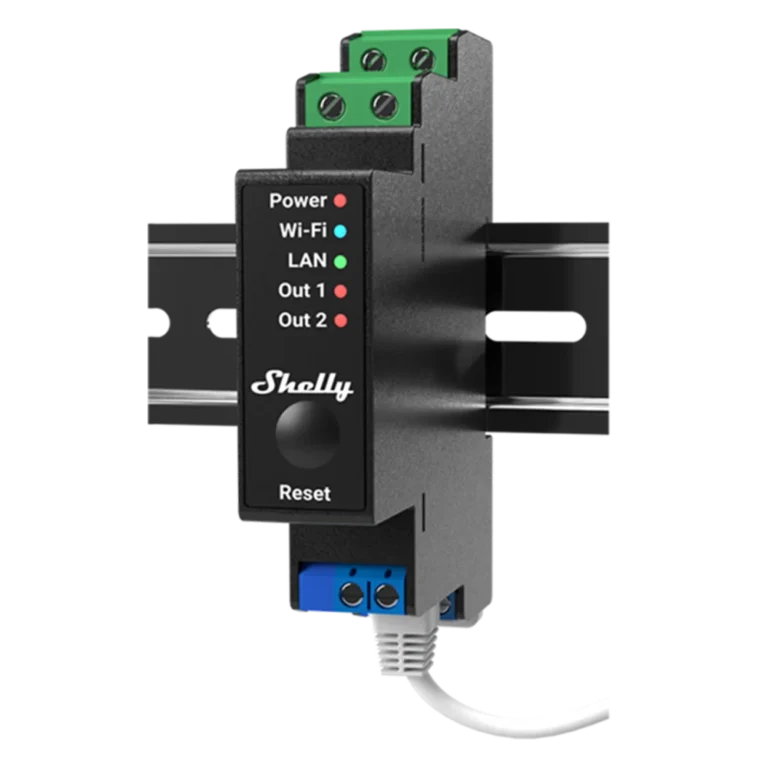

Samhæfð tæki: Shelly Pro RGBWW PM, Pro 1/2, Pro 1PM/2PM, Pro Dimmer 1PM/2PM, Pro EM-50, Pro 3EM, Pro Dimmer 0/1–10V PM. Að minnsta kosti tvö Shelly LoRa viðbót (tvö Pro, eða eitt Pro + eitt LoRa viðbót) eru nauðsynleg til að virkja LoRa sendingu og móttöku.
Loading...
Lýsing
-
Long-range communication: Supports wireless reach up to 5 km, making it ideal for wide-area automation and remote control.
-

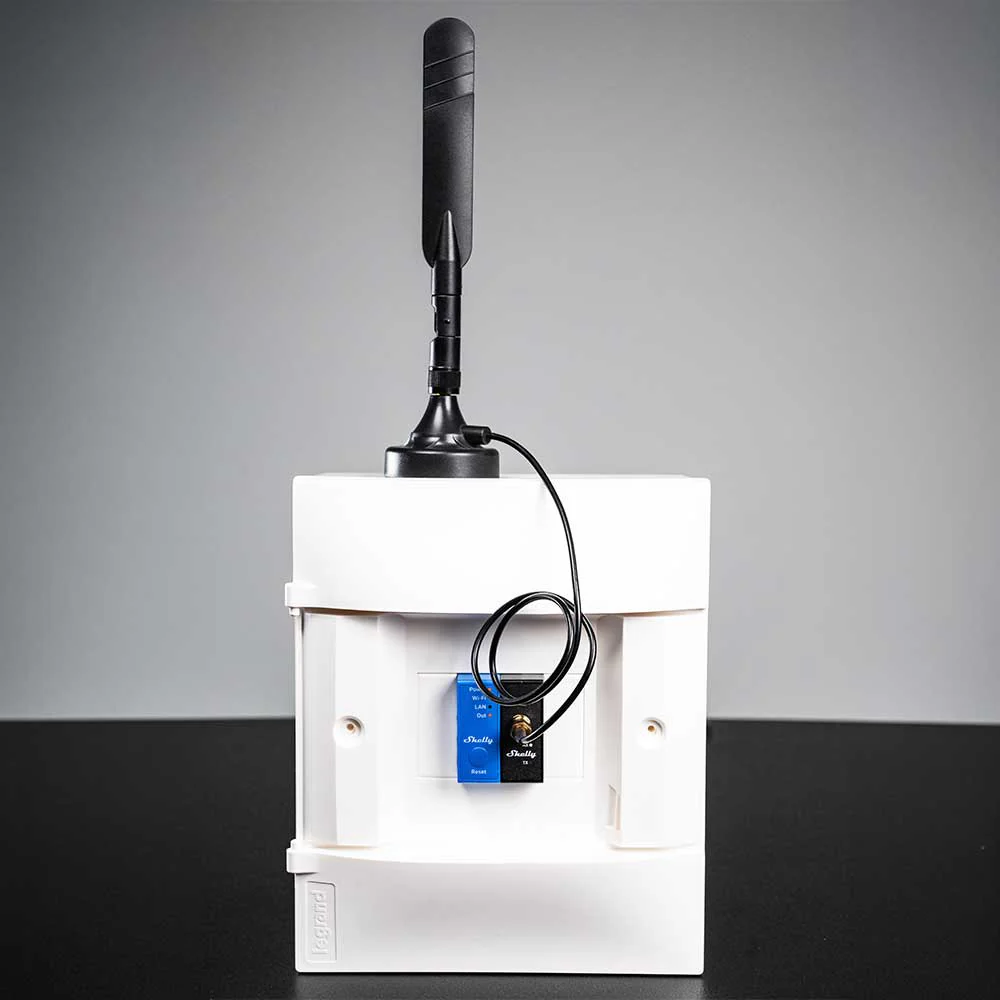

External antenna support: SMA connector for extending or upgrading the antenna to improve coverage in challenging environments.
-
Easy integration: Connects directly to supported Shelly Pro devices via proprietary serial interface for extended functionality.
-
Reliable through obstacles: Maintains stable communication even in obstructed or complex industrial settings.
-
Script-driven automation: Designed for tailored control via user-defined scripts.
-
Low power consumption: Operates under 150 mW for efficient use in remote or battery-sensitive installations.
-

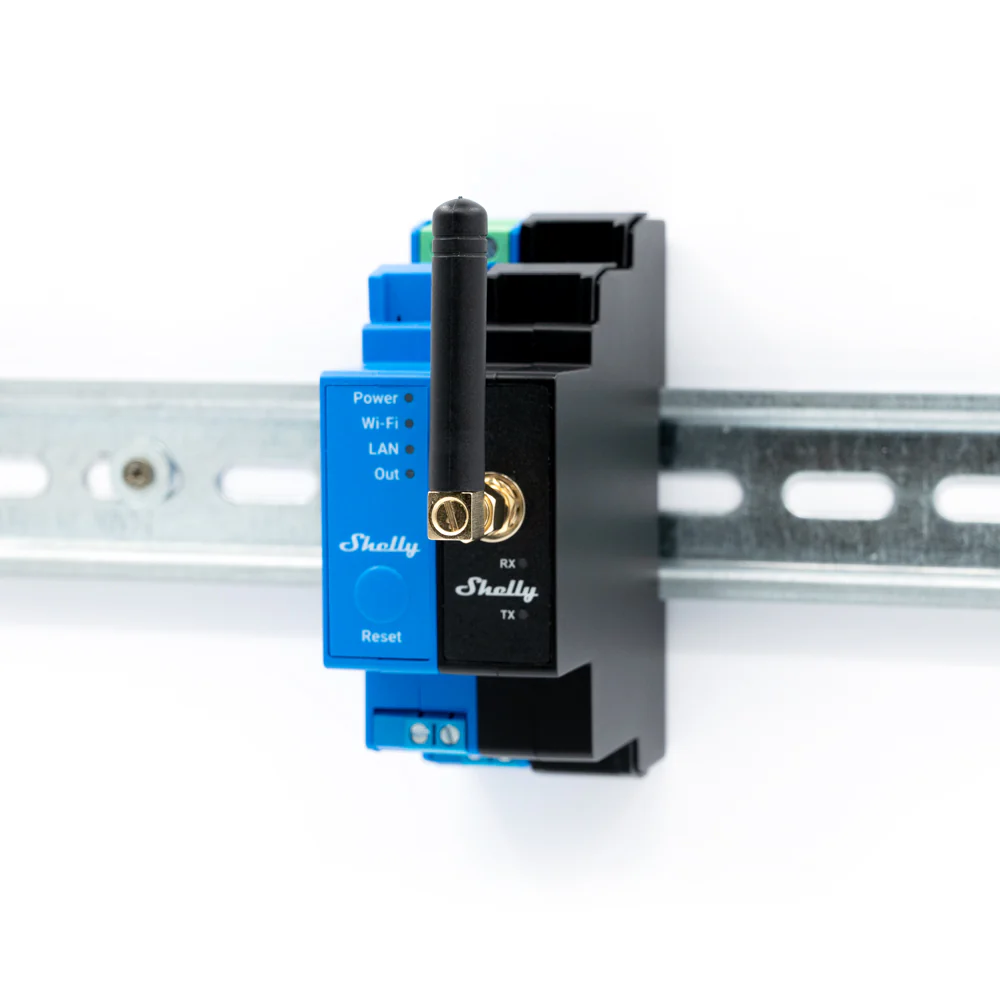

Durable and compact: Lightweight design optimized for DIN rail mounting across various setups.
-
Wide temperature range: Works reliably from -20°C to 40°C for flexible deployment conditions.
-
Built-in AES-CCM encryption always keeps data secure.
-
Compatible in Europe (EU868).
-
Supports low power mode for EU868, enabling continuous communication without duty cycle limitations.
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): |
|
| Weight: |
|
| Mounting: |
|
| Shell material: | Plastic |
| Shell color: | Black |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 3.3 V (from compatible Shelly device) |
| Power consumption: | < 150 mW |
| Radio | |
| LoRa | |
| RF band: |
|
| Max. RF power: | < 14 dBm |
| Range: | Up to 5 000 m / 16 400 ft (Depends on local conditions) |
| Compatible antenna: | |
| Frequency range: | 863-870 MHz |
| Impedance: | 50 Ω |
| SWR | < 3.0 |
| Connector: | SMA-М |
| Compatible host devices | |
| Compatible host devices: |
|
