Shelly The Pill "SSR Add-on"
kr. 2.510
Loading...
Lýsing
Dual-channel solid-state relay module for The Pill by Shelly, controlling two independent DC loads up to 30 V/300 mA. Great for safe and silent control of lights, fans, or other DC devices.

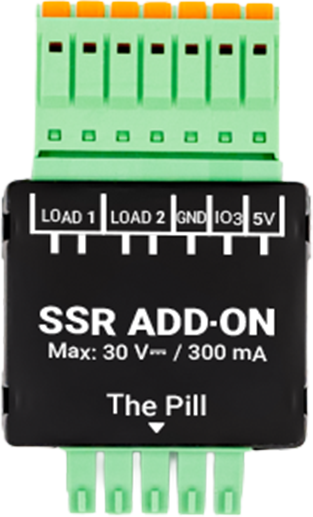

Detailed inputs and outputs description
| Symbol | Description | Usage |
|---|---|---|
| LOAD1 | Channel 1 output | max. 30 V⎓ / 300 mA |
| LOAD2 | Channel 2 output | max. 30 V⎓ / 300 mA |
| GND | Ground | Reference ground for connected sensors or power supply |
| IO3 | Input/Output (logic-level 3.3V) | Configurable for: Digital Input or Digital Output |
| 5V | 5V Power | Power output for connected peripheral or 5V Power for The Pill |
Specifications
| Physical | |
| Size (HxWxD): | 36 mm x 31mm x 11.5mm |
| Weight: | 12 g |
| Shell color: | Black |
| Environmental | |
| Ambient working temperature: | 0 to 40 °C / 32 to 105°F |
| Storage temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power consumption: | < 0.6 W |
| Max. switching voltage: | 30 V⎓ |
| Max. switching current: | 300 mA |
Basic wiring diagrams
Tengdar vörur
-
kr. 2.190https://www.youtube.com/watch?v=NqFXepQX9QI -

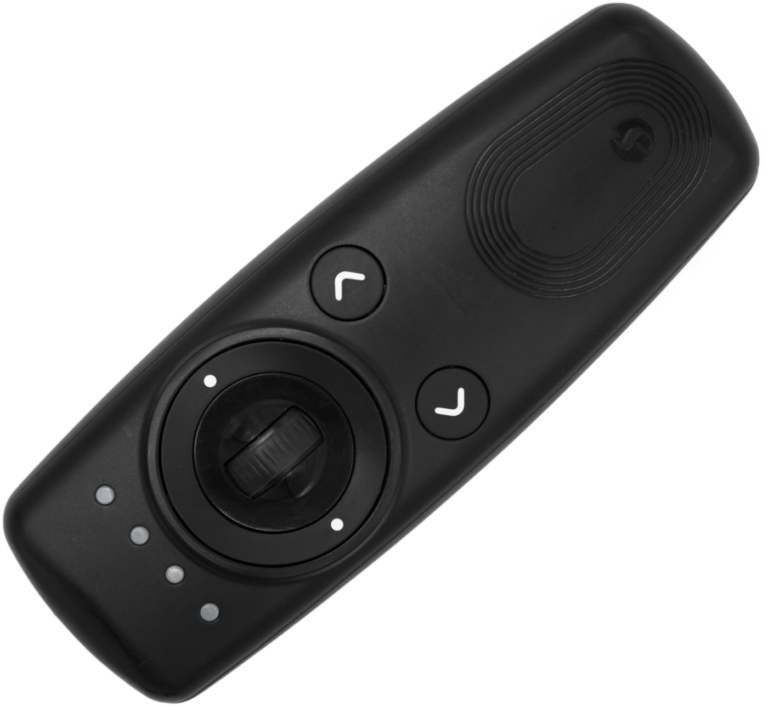

kr. 3.990Shelly BLU fjarstýringin ZB auðveldar stjórnun snjallheimilisins....Veldu kosti This product has multiple variants. The options may be chosen on the product page -
-
