Shelly Wall Display X1i 4" Veggskjár - Væntanlegt í byrjun Okt

Lýsing

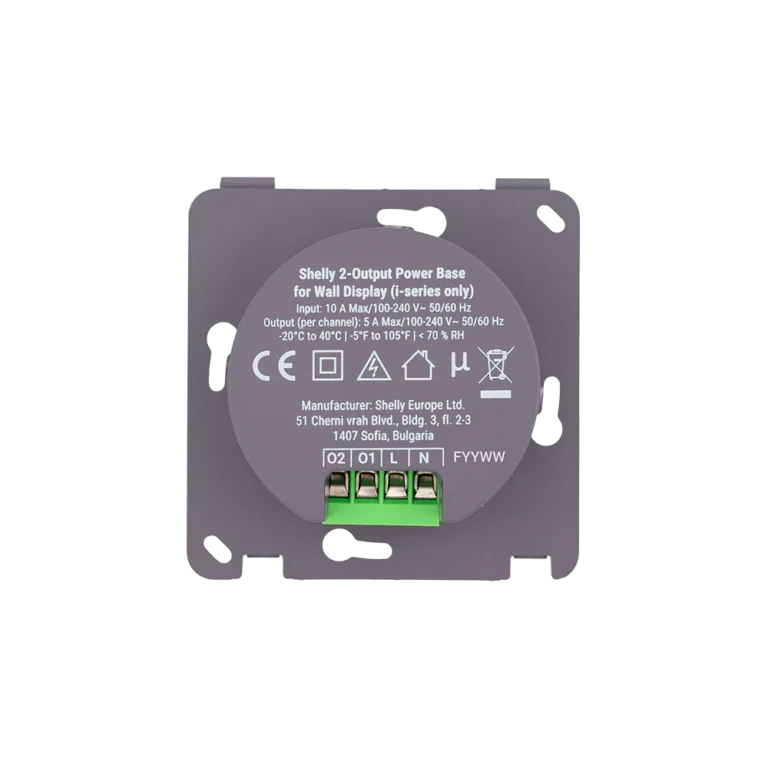

Snjallstjórnborð fyrir heimilið með 4″ snertiskjá í lit og fjögurra kjarna örgjörva. Sökkull fylgir með eins rása relay en hægt að skipta út fyrir sökkul með 2 rása relay. Hentar vel til notkunar á heimilum og skrifstofum.

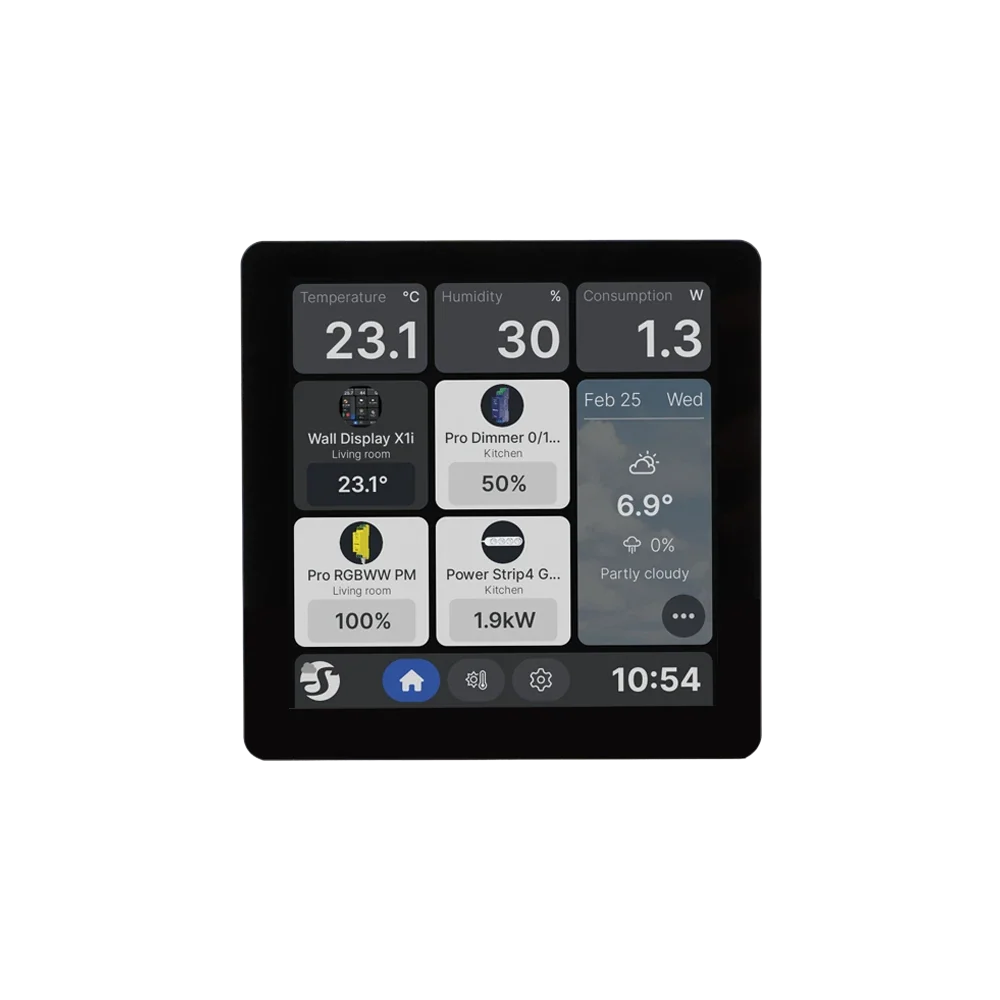

Touch-sensitive 4” color display
New: Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) and Bluetooth 5.0 connectivity
New: Ultra-fast quad-core CPU for instant response
New: Interchangable one-output power base (i-series) with built-in 5 A relay for light control
New: Increased flash memory (8 GB)
New: Built-in light, proximity, and gesture sensors
New: Improved 1 W built-in speaker
Power monitoring for connected Shelly PM devices
Bluetooth and SONOS speakers support
Simple navigation and customizable home screen

Quantity	Value
Physical

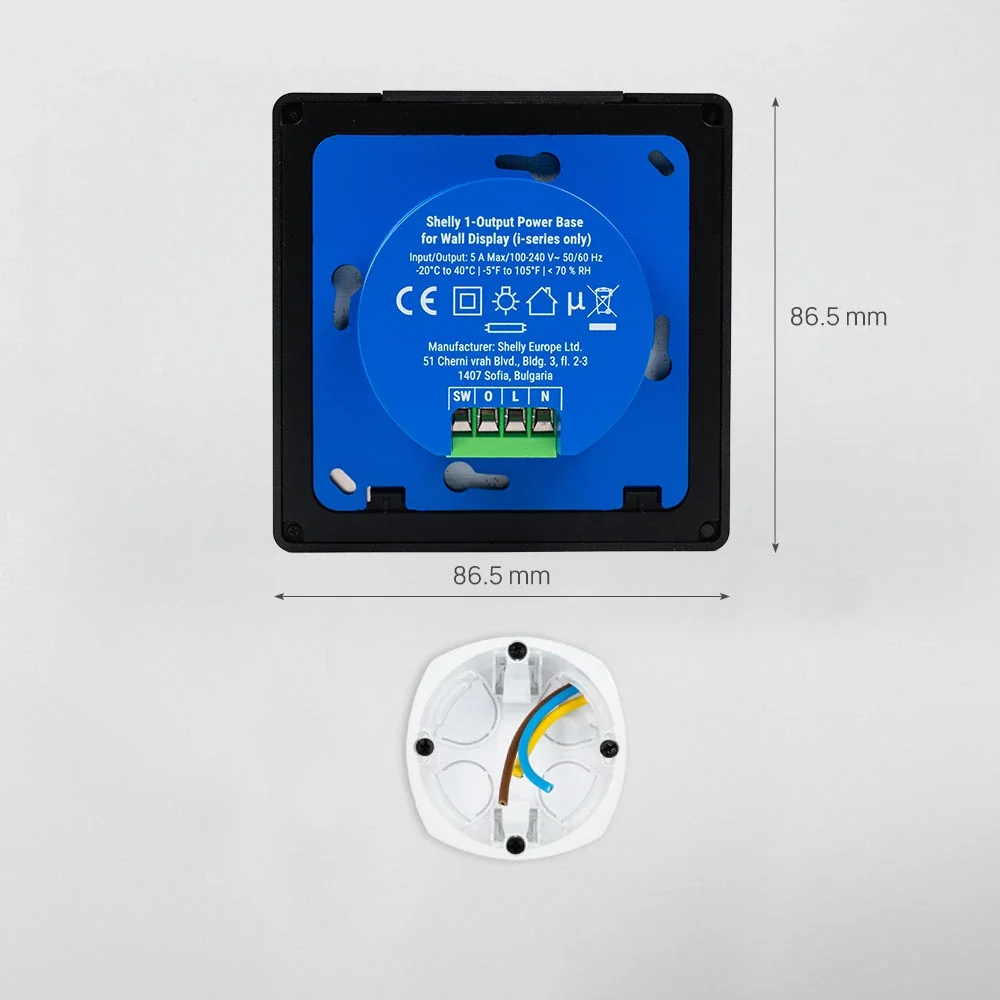

Size (HxWxD):	With power base: 86.5х86.5х35.7 mm / 3.40×3.40×1.40 inch Without power base: 86.5х86.5х11 mm / 3.40×3.40×0.43 inch
Weight:	With power base: 163 g / 5.75 oz Without power base: 113 g / 3.99 oz
Touch Screen:	5-point capacitive
Screen resolution, px:	720x720p
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 inch
Mounting:	Wall box
Shell material:	Plastic, aluminum, glass
Shell color:	Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%)
Speaker:	1 W
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	100-240 V~, 50/60Hz
Power consumption:	< 5 W
USB TYPE-C power supply:	5V⎓, 1A
Output circuits ratings
Max. switching voltage:	240 ~
Max. switching current:	5 A
USB TYPE-C, voltage:	5 V⎓
USB TYPE-C, current:	0.5 A
Sensors, meters
Light sensor:	Yes
Microphone:	Yes
Proximity sensor:	Yes
Radio
Wi-Fi
Protocol:	Wi-Fi 6 Dual Band
RF band:	2412 – 2472 MHz 5150 – 5850 MHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	5.0
RF band:	2402 – 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	Rockchip RK3326-S Quad core Cortex-A35 1.5GHz
RAM:	1 GB
Flash:	8 GB
System:	Android 11
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 2 URLs per hook
Scripting:	No
MQTT:	Yes
