Main features

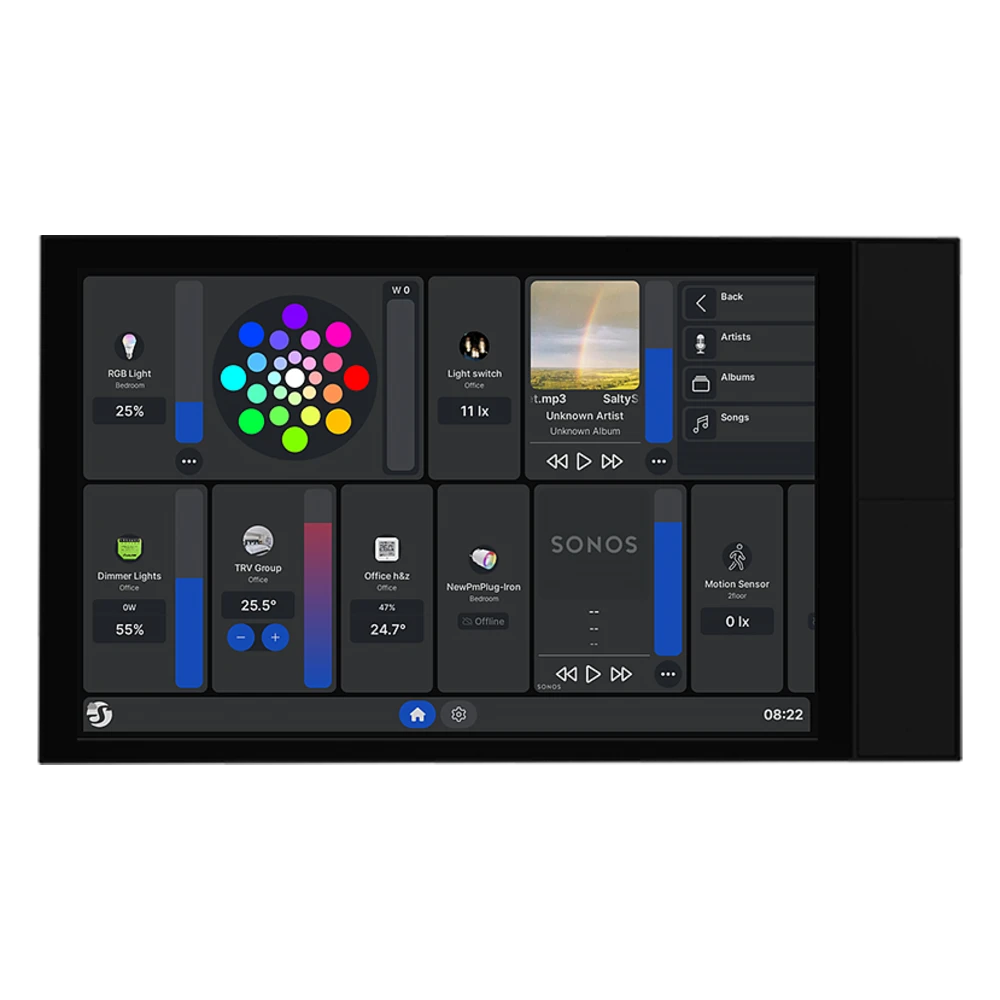

• Touch-sensitive 6.9” color display
• Power base with integrated relay for light control
• Easy navigation and customizable home screen
• Choice between panoramic and portrait view on the display
• Integrated 0.8 W speaker
• Integrated light sensor
• Power consumption monitoring of all devices in a room in your Shelly Smart Control account

Use cases

• Space-efficient fitting: Install the Shelly Wall Display X2i in standard electrical wall boxes for light switches.
• Appliance Control: Use it to remotely control and automate the operation of various electric appliances such as lights, fans, or other devices. Adjust operation of dehumidifiers, humidifiers, and fans based on the current temperature and humidity conditions. Control other devices based on integrated LUX measurement sensor.
• Power Monitoring: Monitor the power consumption of appliances in the room in your Shelly Smart Control account. This is useful for understanding energy usage patterns and promoting energy efficiency.
• Home Automation: Integrate the Shelly Wall Display X2i into your home automation system to create custom scenes and schedules for your devices.
• Audio integration: Connect a Bluetooth or Sonos speaker to the Shelly Wall Display X2i for enhanced audio control. Stream music, notifications, alarms, and other audio signals for better sound coverage.
• Energy Efficiency: Leverage the power measurement feature to identify energy-hungry appliances and make informed decisions to improve overall energy efficiency in your home.
• Remote Monitoring: Keep an eye on your devices even when you’re away from home. The remote access feature allows you to monitor and control connected appliances from anywhere with internet connectivity.
• Climate control: Adjust the heating, ventilation, and air conditioning system based on current temperature and humidity levels to maintain a comfortable indoor environment.
• Prevent mold and mildew: Monitor humidity levels to prevent the growth of mold and mildew in spaces like basements and bathrooms. The Shelly Wall Display X2i can activate ventilation or dehumidification devices when needed.

Main applications

• Residential
• MDU (Multi Dwelling Units – apartments, condominiums, hotels, etc.)
• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
• Government/municipal
• University/college

Integrations

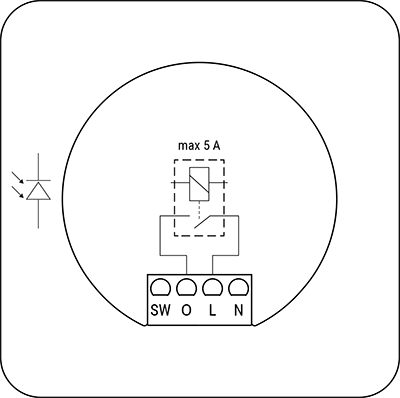

Simplified internal schematics

Device electrical interfaces

Inputs

• 2 power supply inputs on screw terminals: N and L
• 1 switch/button input on screw terminal

Outputs

• 1 output

Detailed inputs and outputs description

N/A

Connectivity

• Wi-Fi
• Bluetooth

Protocols

• HTTP
• RPC over HTTP
• RPC over BLE

Supported load types

• Resistive – incandescent and halogen bulbs
• Capacitive – LED bulbs, LED drivers, CFL (compact fluorescent lamps)
• Inductive – LED light transformers

User interface

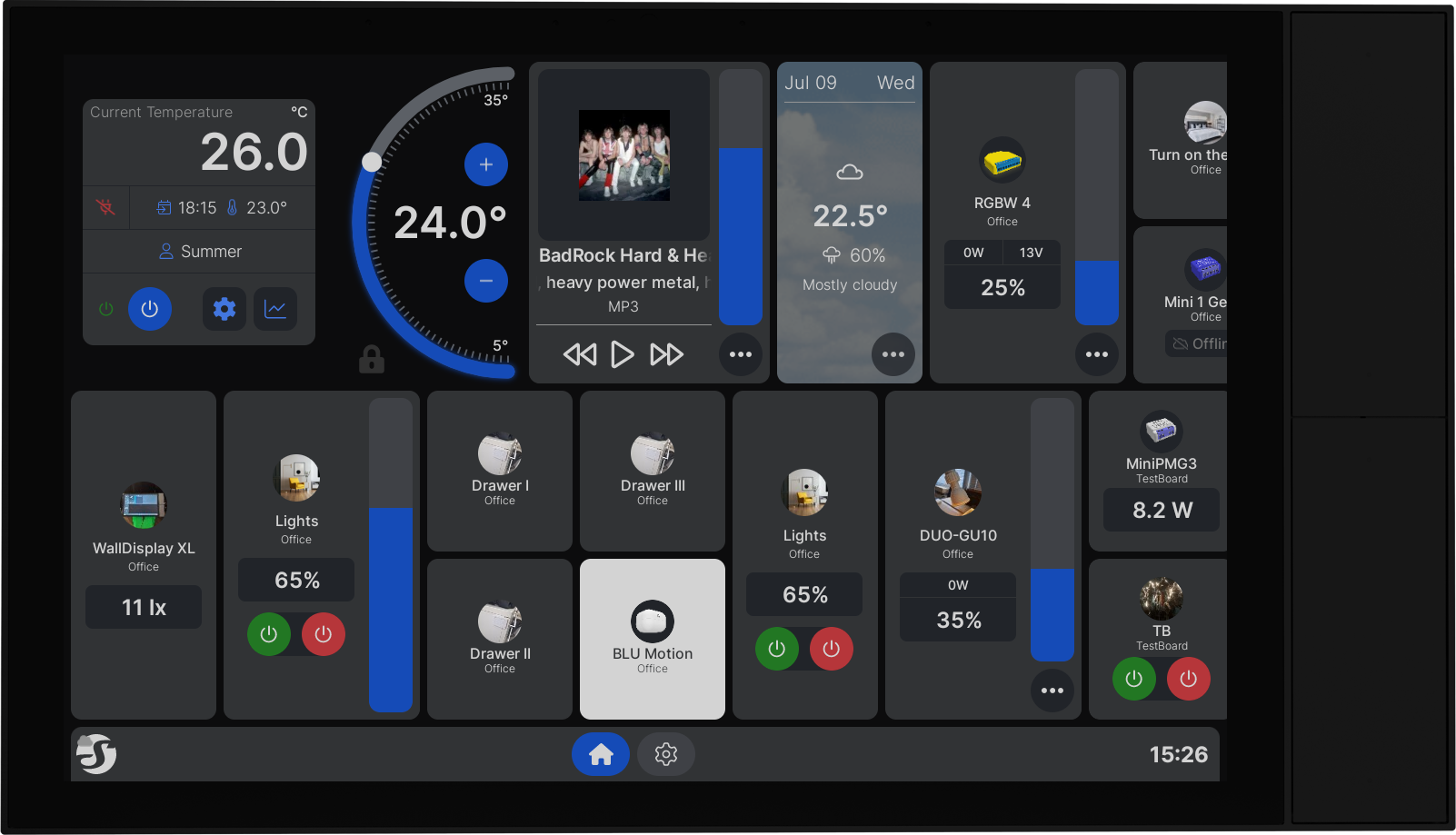

Touch-sensitive 6.9” 5-point capacitive color display with fully-customizable layout.

Specifications

Basic wiring diagrams

Legend
