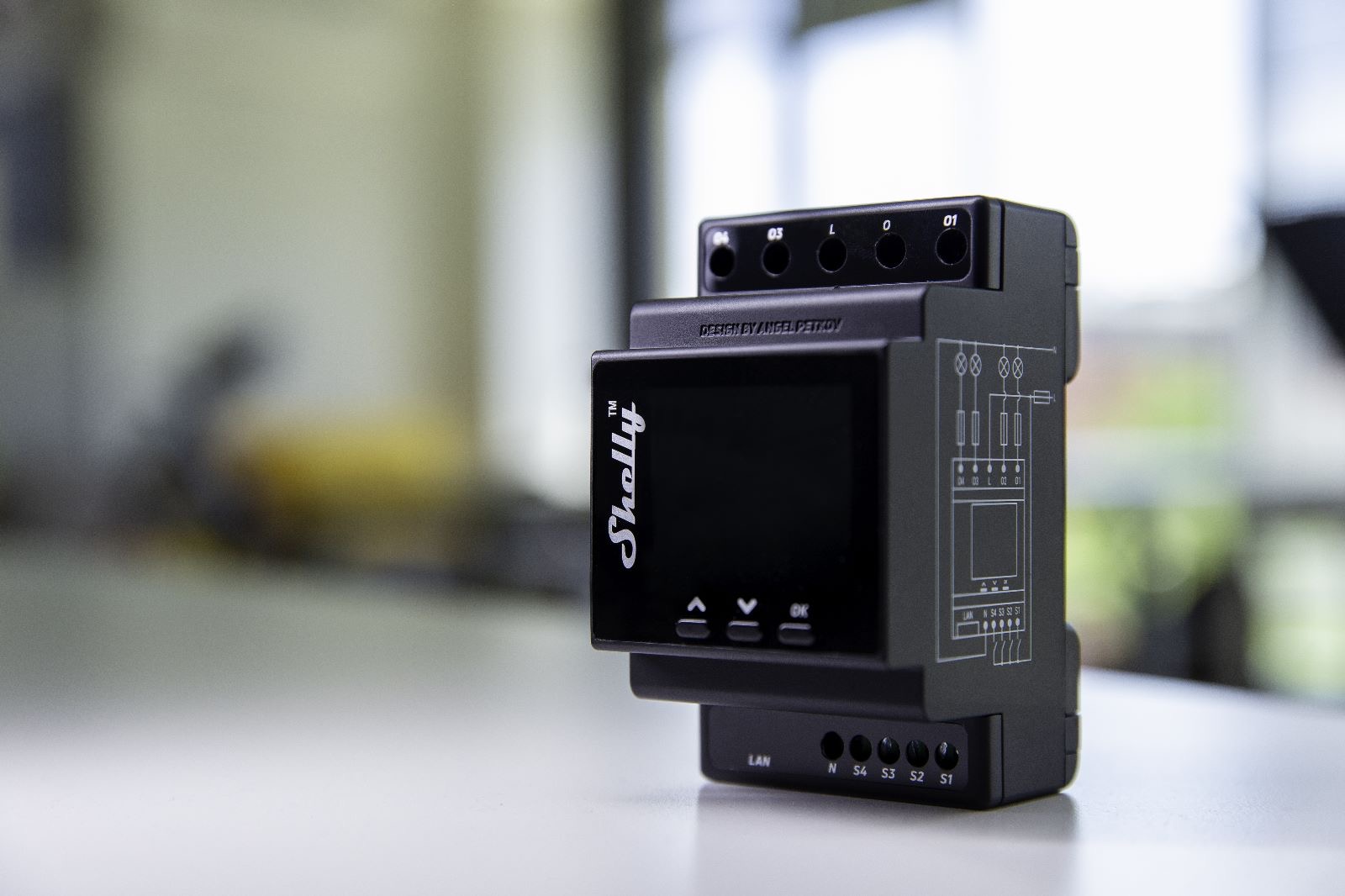

Shelly Pro Dual Cover/Shutter PM (2 átta mótorstýring)

Lýsing

[vc_row][vc_column][vc_column_text]

PHYSICAL
Size (HxWxD):	96x53x59 ±0.02 mm / 3.78×2.01×2.32 ±0.02 in
Weight:	0.150kg
Mounting:	DIN rail
Screw terminals max torque:	0.4 Nm / 3.5 lbin (green connectors)
Conductor cross section:	0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in (green connectors)
Shell material:	Plastic
Color:	Black
ENVIRONMENTAL
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
ELECTRICAL
Power supply voltage AC:	110 – 240 V
Power supply voltage DC:	N/A
Power consumption:	< 3 W
Neutral not needed:	No
OUTPUT CIRCUITS RATINGS
Controlled motor max. power:	• 1.0 HP @ 240 VAC, • 0.5 HP @ 120 VAC
SENSORS, METERS
Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Temperature sensor:	Yes
RADIO
RF band:	2400 – 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32-D0WDQ6
Flash:	8 MB
FIRMWARE CAPABILITIES
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No

Notendaleiðbeiningar[/vc_column_text][/vc_column][/vc_row]
